PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade for High Load Applications

Name: PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing - Premium Grade for High Load Applications
Brand: Suncor Stainless, Inc.
SKU: PUL-f206f7
Price: 49.99 USD
Availability: OutOfStock

SKU:PUL-f206f7

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

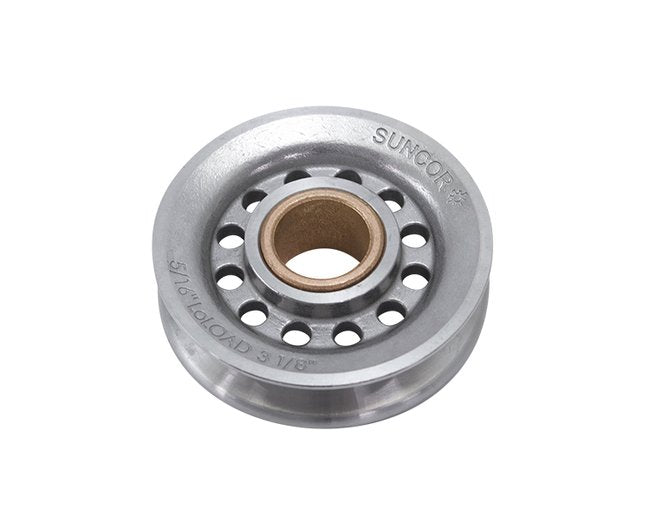

The PullPro™ 316 Stainless Steel/Bronze Rope Sheave Bushing is a premium grade component designed for demanding projects. Made from grade 316 stainless steel for exceptional corrosion resistance and durability, it features a lead-free oil impregnated bronze bushing ideal for high load, slow-turning applications. With a thick wall supporting side load wear and minimizing friction, this sheave ensures safety and longevity. Choose from a range of sizes and hub styles for a tailored solution that optimizes weight, groove diameter, and throat angle, making it versatile and reliable for a variety of applications.

Product Specifications

Note

All dimensions are nominal (± 3%) and are subject to change without notice.

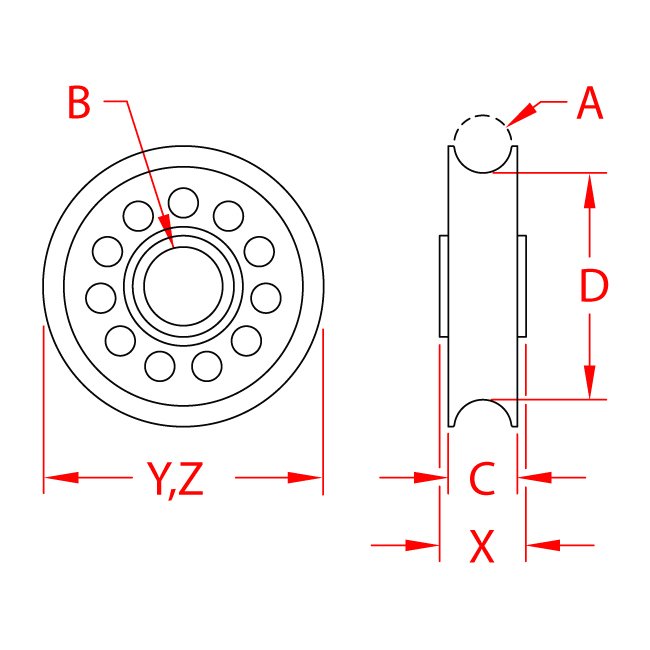

Specifications Bushing Material

Bronze

Specifications Dimension B

0.38 in

Specifications Dimension C

0.51 in

Specifications Dimension D

1.65 in

Specifications Dimension X

0.56 in

Specifications Dimension Y

2.00 in

Specifications Dimension Z

2.00 in

Specifications Material

316 Stainless Steel

Specifications Pulley Type

Rope

Specifications Rope Size A

3/8 to 7/16 in

Specifications Weight

0.22 (lb)

Specifications Working Load Limit Wll

1000 lb

CAGE

1CXX6

NAICS

332999

PSC

5340
