PullPro™ 316 Stainless Steel Rope Sheave Bearing - Premium Grade

Name: PullPro™ 316 Stainless Steel Rope Sheave Bearing - Premium Grade
Brand: Suncor Stainless, Inc.
SKU: PUL-d99bad
Price: 49.99 USD
Availability: OutOfStock

SKU:PUL-d99bad

Premium PullPro™ 316 Stainless Steel Sheave for durable and versatile performance.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

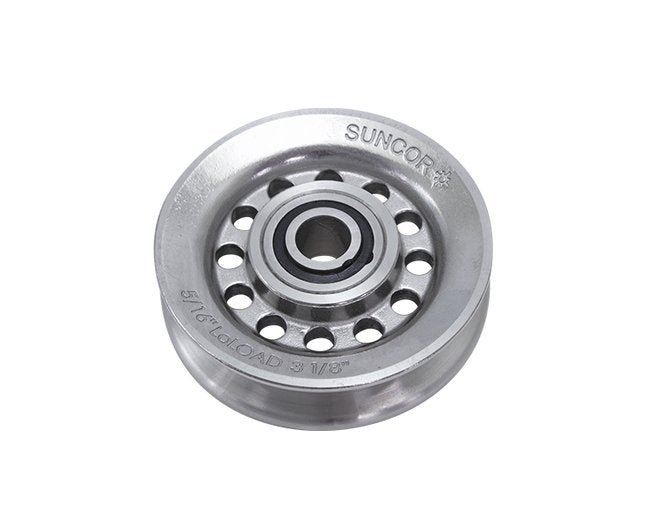

The PullPro™ 316 Stainless Steel Rope Sheave Bearing is engineered with precision and durability in mind. Featuring a 440C hardened stainless steel ball bearing, this sheave is designed to accommodate rope sizes from 3/8" to 1" for a customized fit. Crafted from grade 316 stainless steel, it offers exceptional corrosion resistance and long-lasting performance. The full complement ball bearing race supports high static loads, making it ideal for heavy-duty applications. With water-resistant grease and a removable PTFE seal, maintenance is convenient and efficient. Choose PullPro™ for a premium stainless steel sheave that's reliable, versatile, and built to last.

Product Specifications

Note

All dimensions are nominal (± 3%) and are subject to change without notice.

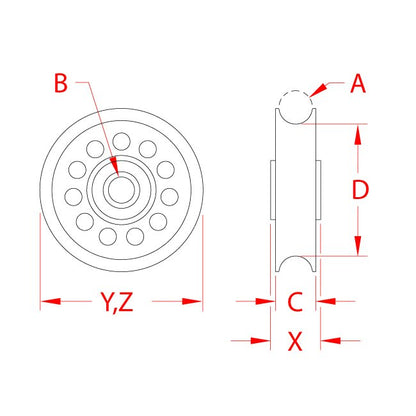

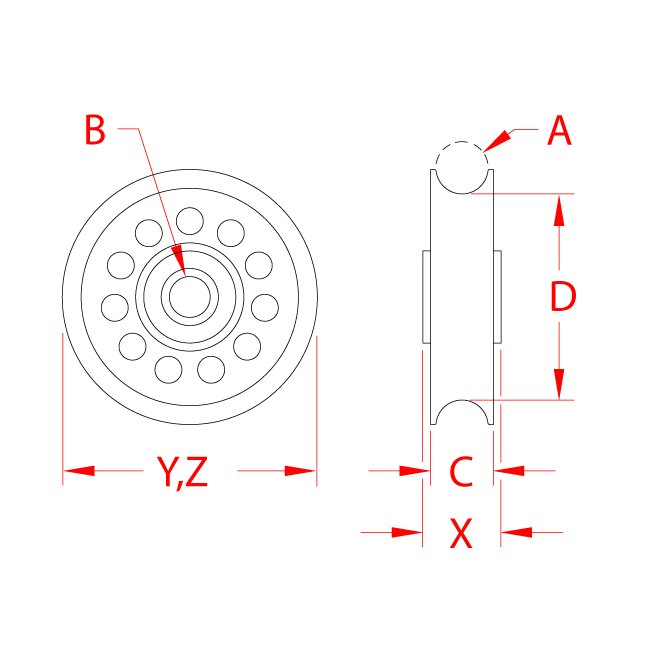

Specifications Dimension B

0.50 in

Specifications Dimension C

0.77 in

Specifications Dimension D

2.53 in

Specifications Dimension X

0.86 in

Specifications Dimension Y

3.13 in

Specifications Dimension Z

3.13 in

Specifications Material

316 Stainless Steel

Specifications Pulley Type

Rope

Specifications Rope Size A

5/8 in

Specifications Weight

0.67 (lb)

Specifications Working Load Limit Wll

3000 lb

CAGE

1CXX6

NAICS

332999

PSC

5340
