PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing

Name: PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing
Brand: Suncor Stainless, Inc.
SKU: PUL-dab850
Price: 49.99 USD
Availability: OutOfStock

SKU:PUL-dab850

Upgrade your projects with PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing, ensuring durability and optimal performance.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

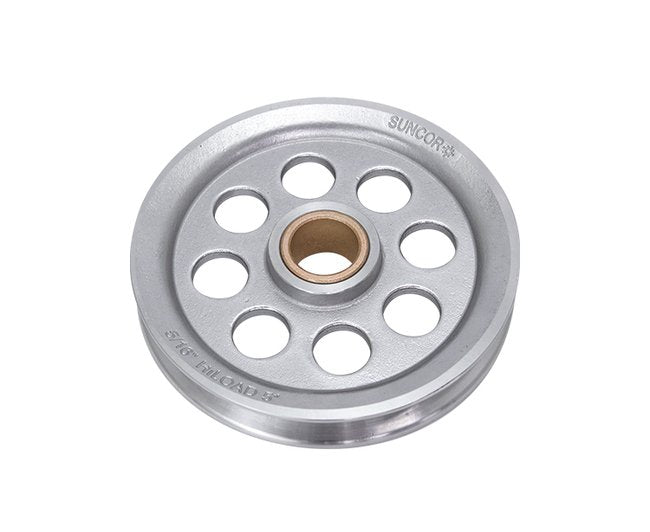

Enhance your projects with the PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing. Crafted from grade 316 stainless steel and lead-free oil-impregnated bronze, this premium sheave is perfect for high load, slow turning applications. With a thick wall for added support and reduced friction, it ensures durability and optimal performance. Ideal for 180-degree wire rope turns, this sheave offers versatility, safety, and long-lasting reliability. Choose PullPro™ for a superior fit tailored to your specific application.

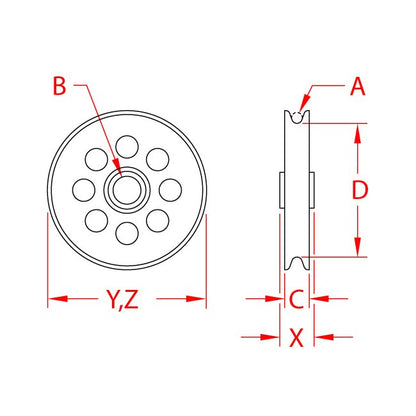

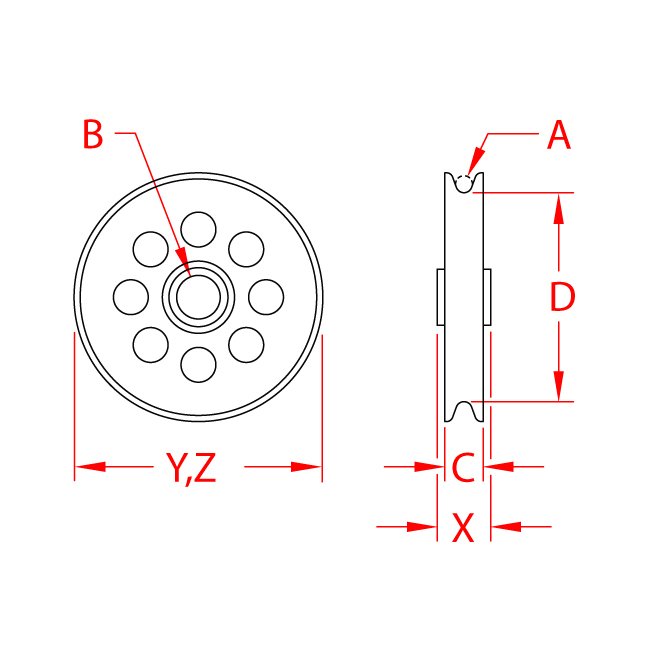

Product Specifications

Note

All dimensions are nominal (± 3%) and are subject to change without notice.Includes Spacer

Specifications Bushing Material

Bronze

Specifications Dimension B

0.63 in

Specifications Dimension C

0.77 in

Specifications Dimension D

4.20 in

Specifications Dimension X

0.86 in

Specifications Dimension Y

5.00 in

Specifications Dimension Z

5.00 in

Specifications Material

316 Stainless Steel

Specifications Pulley Type

Wire Rope

Specifications Spacer Part

S0429-162222

Specifications Weight

1.48 (lb)

Specifications Wire Size A

5/16 in

Specifications Working Load Limit Wll

3000 lb

CAGE

1CXX6

NAICS

332999

PSC

5340

PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing
