PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing

PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing

SKU:PUL-3e4f87

Premium 316 Stainless Steel/Bronze Sheave Bushing for high-load applications. Grade 316 stainless steel & oil-impregnated bronze ensure durability & reduced friction.

Regular price $59.99
Regular price Sale price $59.99
Sale

Initiate Order

PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing

PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing

$59.99

Quantity: 1

Claim Your Seller Account

PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing

PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing

$59.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

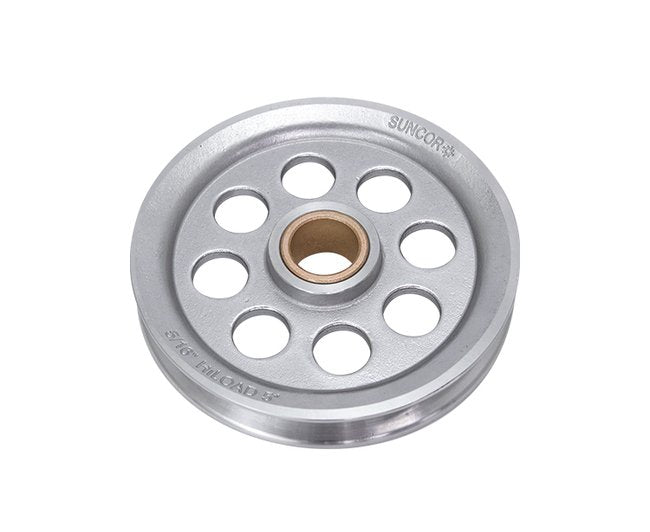

The PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing is a premium choice for high-load, slow turning applications. Made from grade 316 stainless steel and lead-free oil-impregnated bronze bushing, it ensures maximum durability, corrosion resistance, and reduced friction. Featuring a thick-walled bushing for side load support, it is perfect for 180-degree wire rope turns with a high D/d ratio. With a working load limit of 4500 lb, this sheave is versatile, safe, and long-lasting, offering optimal performance tailored to specific applications.

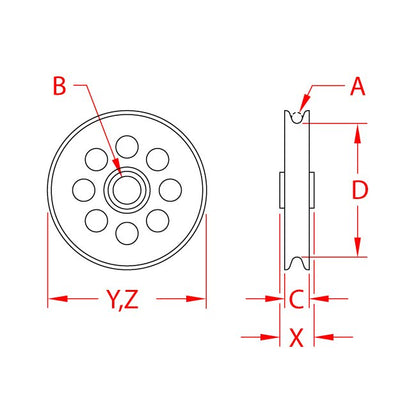

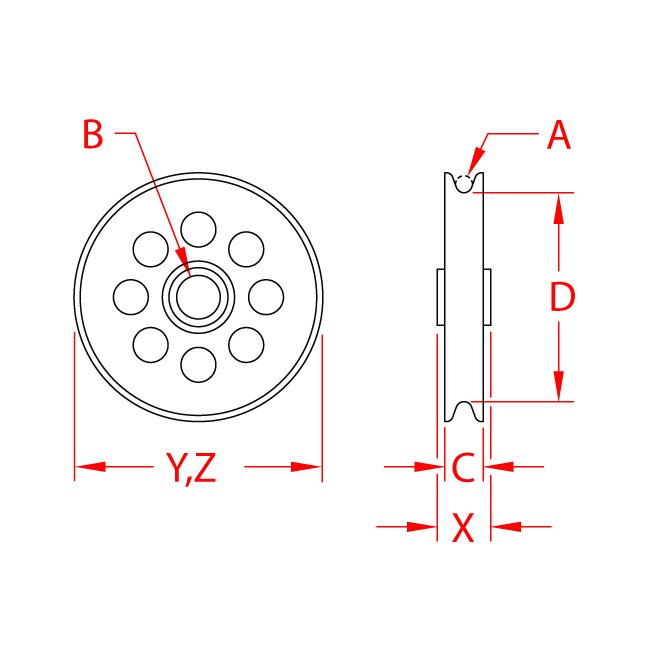

Product Specifications

Note
All dimensions are nominal (± 3%) and are subject to change without notice.
Specifications Bushing Material
Bronze
Specifications Dimension B
1.13 in
Specifications Dimension C
0.92 in
Specifications Dimension D
5.00 in
Specifications Dimension X
1.00 in
Specifications Dimension Y
6.00 in
Specifications Dimension Z
6.00 in
Specifications Material
316 Stainless Steel
Specifications Pulley Type
Wire Rope
Specifications Weight
2.32 (lb)
Specifications Wire Size A
3/8 in
Specifications Working Load Limit Wll
4500 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
