PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing - Premium Grade
PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing - Premium Grade
SKU:PUL-512252
Enhance projects with PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave - premium grade for superior performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing - Premium Grade
$29.99
Quantity: 1
Claim Your Seller Account
PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing - Premium Grade
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

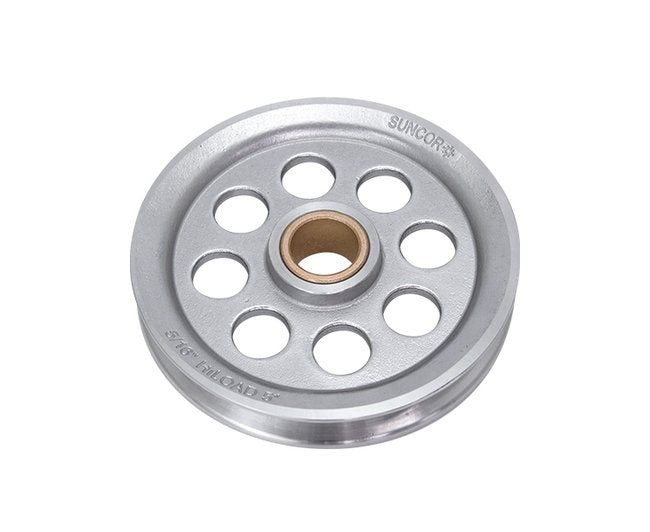

Enhance your projects with the PullPro™ HiLoad 316 Stainless Steel/Bronze Wire Rope Sheave Bushing. Crafted from grade 316 stainless steel for superior corrosion resistance, this sheave features a lead-free oil-impregnated bronze bushing ideal for high-load, slow turning applications. With precise dimensions and a focus on durability, this premium sheave ensures optimal performance for diverse project needs.
Product Specifications
Note
All dimensions are nominal (± 3%) and are subject to change without notice.
Specifications Bushing Material
Bronze

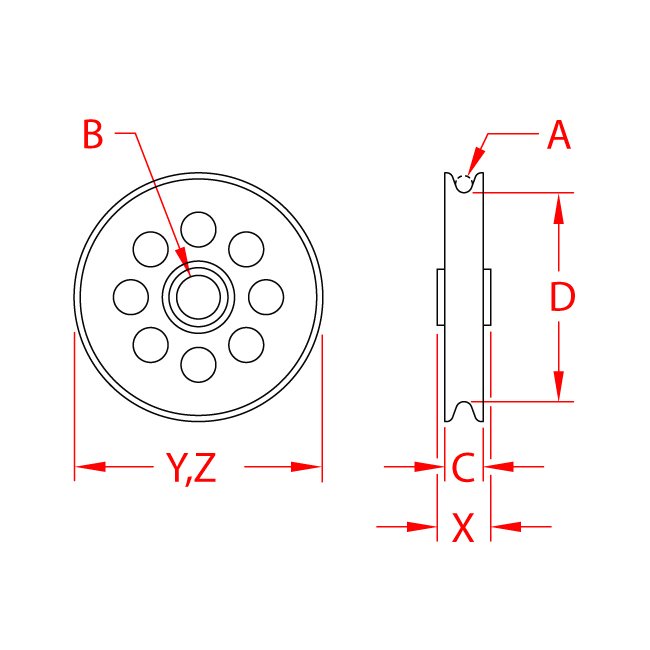

Specifications Dimension B
0.38 in
Specifications Dimension C
0.39 in
Specifications Dimension D
1.64 in
Specifications Dimension X
0.44 in
Specifications Dimension Y
2.00 in
Specifications Dimension Z
2.00 in
Specifications Material
316 Stainless Steel
Specifications Pulley Type
Wire Rope
Specifications Weight
0.13 (lb)
Specifications Wire Size A
1/8 in
Specifications Working Load Limit Wll
500 lb
CAGE
1CXX6
NAICS
332999
PSC
5340
