PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing

Name: PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing
Brand: Suncor Stainless, Inc.
SKU: PUL-5dd198
Price: 49.99 USD
Availability: OutOfStock

SKU:PUL-5dd198

Premium-grade PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing for high-load, slow-turning applications. Offers exceptional corrosion resistance and durability.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

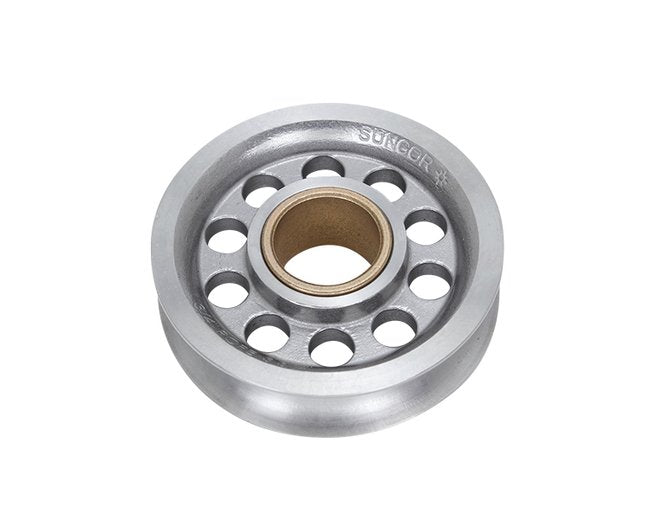

The PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing is a premium-grade sheave designed for high-load, slow-turning applications. Crafted from grade 316 stainless steel for exceptional corrosion resistance and durability, this sheave features a lead-free oil impregnated bronze bushing. The thick-walled bushing supports side load wear and minimizes friction, ensuring smooth operation. With a compact design for deflection turns under 90 degrees, this sheave is versatile, robust, safe, and long-lasting. Choose PullPro™ for optimal performance and tailored solutions for your project needs.

Product Specifications

Note

All dimensions are nominal (± 3%) and are subject to change without notice.Includes Spacer

Specifications Bushing Material

Bronze

Specifications Dimension B

0.50 in

Specifications Dimension C

0.77 in

Specifications Dimension D

2.33 in

Specifications Dimension X

0.86 in

Specifications Dimension Y

3.13 in

Specifications Dimension Z

3.13 in

Specifications Material

316 Stainless Steel

Specifications Pulley Type

Wire

Specifications Spacer Part

S0429-132222

Specifications Weight

0.83 (lb)

Specifications Wire Size A

5/16 in

Specifications Working Load Limit Wll

2000 lb

CAGE

1CXX6

NAICS

332999

PSC

5340

PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing
