PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing - Small Diameter
PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing - Small Diameter
SKU:PUL-1bd76d
Premium 316 Stainless Steel/Bronze Sheave Bushing for high load applications, optimal weight distribution.
Regular price

            $89.99


          Regular price






          Sale price

          $89.99



        Unit price



           per




    Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

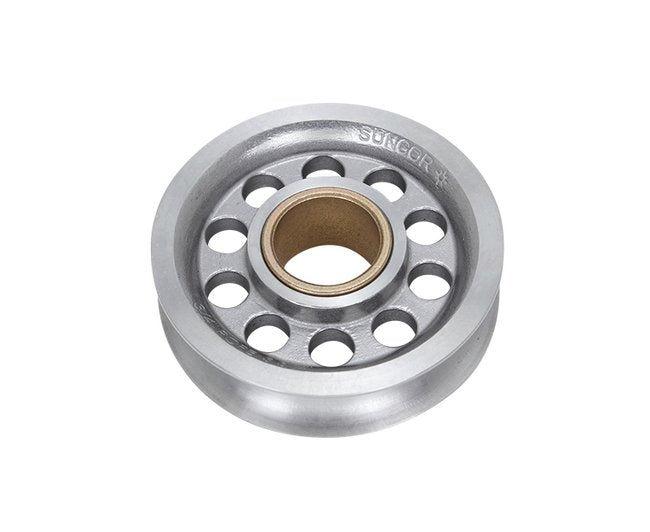

The PullPro™ LoLoad 316 Stainless Steel/Bronze Wire Sheave Bushing is a premium choice for high load, slow turning applications. Made from grade 316 stainless steel and lead-free oil-impregnated bronze bushing, it offers maximum corrosion resistance, durability, and reduced friction. With a smaller diameter designed for economical small deflection turns, this sheave ensures optimal weight distribution, groove diameter, and throat angle for versatile, robust, and long-lasting performance.

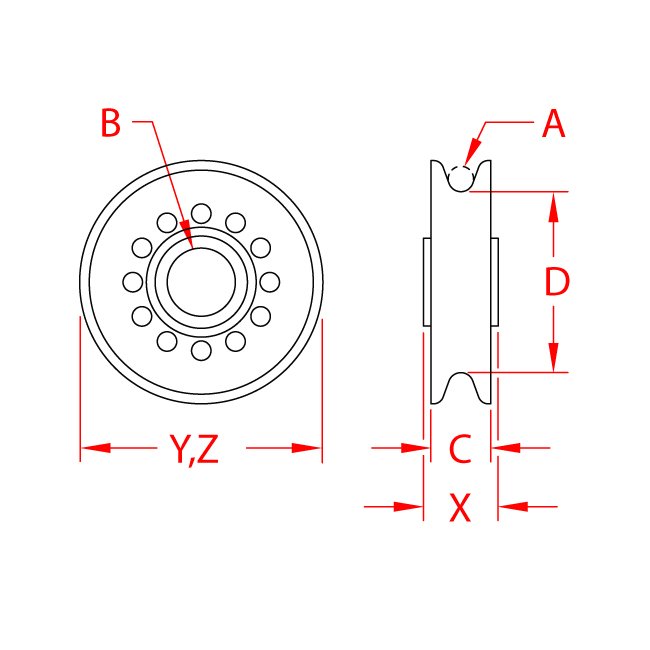

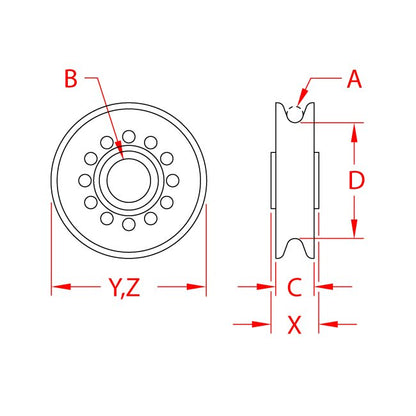

Product Specifications
                  Note

                All dimensions are nominal (± 3%) and are subject to change without notice.

                  Specifications Bushing Material

                Bronze

                  Specifications Dimension B

                0.88 in

                  Specifications Dimension C

                0.77 in

                  Specifications Dimension D

                2.33 in

                  Specifications Dimension X

                0.84 in

                  Specifications Dimension Y

                3.13 in

                  Specifications Dimension Z

                3.13 in

                  Specifications Material

                316 Stainless Steel

                  Specifications Pulley Type

                Wire

                  Specifications Weight

                0.73 (lb)

                  Specifications Wire Size A

                5/16 in

                  Specifications Working Load Limit Wll

                2000 lb

                  CAGE

                1CXX6

                  NAICS

                332999

                  PSC

                5340
