SBT Series 3.8mm Three-Way Trunnion Ball Valve with SUPERLOK® Inlet
SBT Series 3.8mm Three-Way Trunnion Ball Valve with SUPERLOK® Inlet
SKU:SBT-81e338
High-pressure 3.8mm Three-Way Ball Valve with SUPERLOK® Inlet for reliable shut-off in extreme conditions.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
SBT Series 3.8mm Three-Way Trunnion Ball Valve with SUPERLOK® Inlet
$249.99
Quantity: 1
Claim Your Seller Account
SBT Series 3.8mm Three-Way Trunnion Ball Valve with SUPERLOK® Inlet
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBT Series 3.8mm Three-Way Trunnion Ball Valve with SUPERLOK® Inlet is a high-pressure valve designed for reliable shut-off or switching functions in extreme applications. Equipped with PEEK trunnion bearings for extended cycle life, this valve features a rugged design with spring-loaded seats for low operating torques. With a pressure rating of 6000 psi and temperature range of 0 to 450 °F, it ensures durable performance. Ideal for institutional use, it meets industry standards for robustness and efficiency.
Product Specifications
Features Features
PEEK trunnion bearings for longer cycle lifeTwo-way and three way designsBlow-out resistant two-piece ball/stemLow operating torquePanel mountable to 9.7mm thicknessHandle indicates direction of flowPositive handle stops100% factory testedCompact, maximum flow design
Note Note

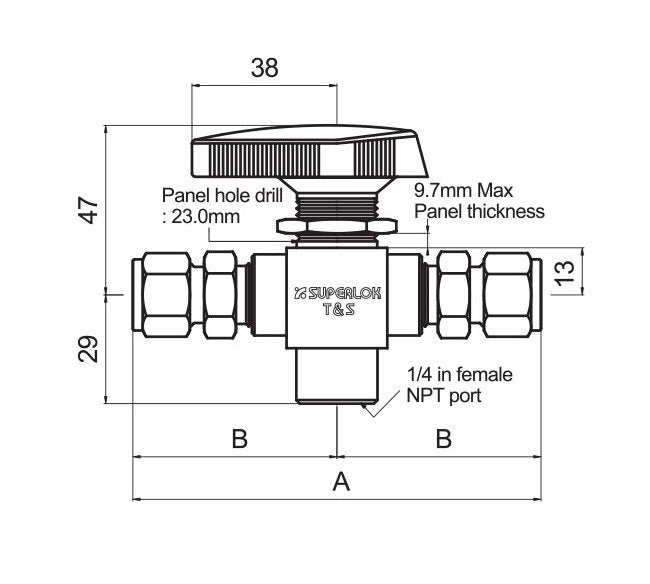

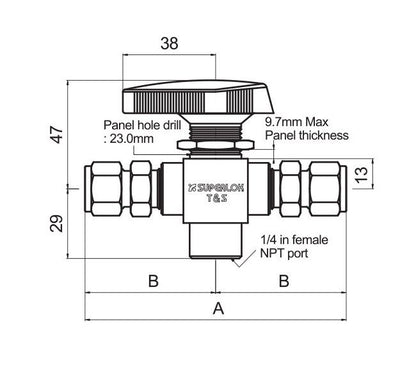

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Configurations
Three-Way Valve
Technical Specs Body Material
Stainless Steel
Technical Specs Dimension A
117 mm
Technical Specs Dimension B
58.4 mm
Technical Specs Flow Coefficients Cv
0.75
Technical Specs Inlet End Connections
12 mm Superlok®
Technical Specs Orifice Size
3.8 mm
Technical Specs Outlet End Connections
12 mm Superlok®
Technical Specs Port Connections
1/8 to 1/2 in. and 6 to 12mm Superlok® Tube Fitting or Female National Pipe Thread (FNPT) end connection
Technical Specs Pressure Rating With Polychlorotrifluoroethylene
6000 psi | 414 bar
Technical Specs Temperature Rating
0 to 450 ºF | -17 to 232 ºC
