SBT Series 3.8mm Trunnion Ball Valve with 8mm SUPERLOK® Connections
SBT Series 3.8mm Trunnion Ball Valve with 8mm SUPERLOK® Connections
SKU:SBT-dd1d1d
Reliable SBT Series 3.8mm Trunnion Ball Valve for high-pressure applications, featuring 8mm SUPERLOK® Connections.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
SBT Series 3.8mm Trunnion Ball Valve with 8mm SUPERLOK® Connections
$249.99
Quantity: 1
Claim Your Seller Account
SBT Series 3.8mm Trunnion Ball Valve with 8mm SUPERLOK® Connections
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unparalleled reliability with the SBT Series 3.8mm Trunnion Ball Valve featuring 8mm SUPERLOK® Inlet End Connections. Ideal for high-pressure applications up to 10,000 psig, this compact valve boasts PEEK trunnion bearings, blow-out resistance, and low operating torque for extended life and efficiency. With durable stainless steel construction and spring-loaded seats, this valve ensures superior shut-off performance at temperatures ranging from 0 to 450°F. Panel mountable, factory tested, and sleekly designed for maximum flow.
Product Specifications
Features Features
PEEK trunnion bearings for longer cycle lifeTwo-way and three way designsBlow-out resistant two-piece ball/stemLow operating torquePanel mountable to 9.7mm thicknessHandle indicates direction of flowPositive handle stops100% factory testedCompact, maximum flow design
Note Note

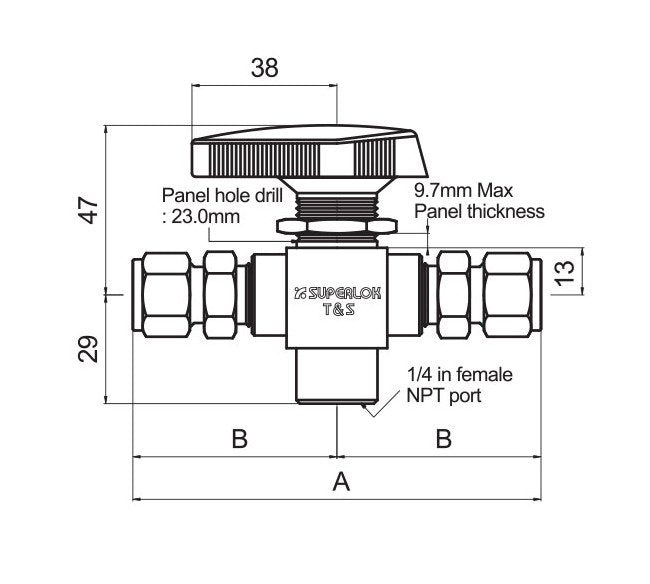

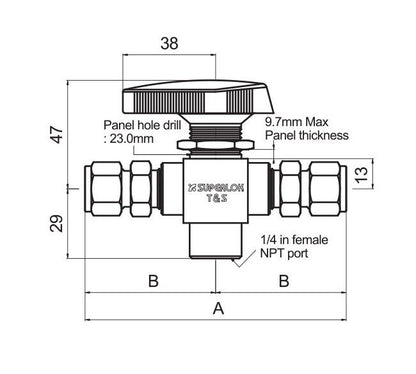

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Configurations
Three-Way Valve
Technical Specs Body Material
Stainless Steel
Technical Specs Dimension A
105 mm
Technical Specs Dimension B
52.6 mm
Technical Specs Flow Coefficients Cv
0.75
Technical Specs Inlet End Connections
8 mm Superlok®
Technical Specs Orifice Size
3.8 mm
Technical Specs Outlet End Connections
8 mm Superlok®
Technical Specs Port Connections
1/8 to 1/2 in. and 6 to 12mm Superlok® Tube Fitting or Female National Pipe Thread (FNPT) end connection
Technical Specs Pressure Rating With Polychlorotrifluoroethylene
6000 psi | 414 bar
Technical Specs Temperature Rating
0 to 450 ºF | -17 to 232 ºC
