SBT Series 3.8mm Trunnion Ball Valve with SUPERLOK® Connections
SBT Series 3.8mm Trunnion Ball Valve with SUPERLOK® Connections
SKU:SBT-a46b66
High-pressure 3.8mm Trunnion Ball Valve with SUPERLOK® Inlet Connections, durable and reliable for extreme applications.
Regular price
$269.99
Regular price
Sale price
$269.99
Unit price
per
Initiate Order
SBT Series 3.8mm Trunnion Ball Valve with SUPERLOK® Connections
$269.99
Quantity: 1
Claim Your Seller Account
SBT Series 3.8mm Trunnion Ball Valve with SUPERLOK® Connections
$269.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBT Series 3.8mm Trunnion Ball Valve with 1/4 inch SUPERLOK® Inlet End Connections is a reliable solution for high-pressure applications. Featuring PEEK trunnion bearings for extended cycle life, this three-way valve offers low operating torque, blow-out resistance, and panel-mounting capability. With a pressure rating of 6000 psi and temperature range of 0 to 450 ºF, this stainless steel valve is designed for durability and performance in demanding environments. Trust in the compact design and superior craftsmanship of the SBT Series for your shut-off and switching needs.
Product Specifications
Features Features
PEEK trunnion bearings for longer cycle lifeTwo-way and three way designsBlow-out resistant two-piece ball/stemLow operating torquePanel mountable to 9.7mm thicknessHandle indicates direction of flowPositive handle stops100% factory testedCompact, maximum flow design
Note Note

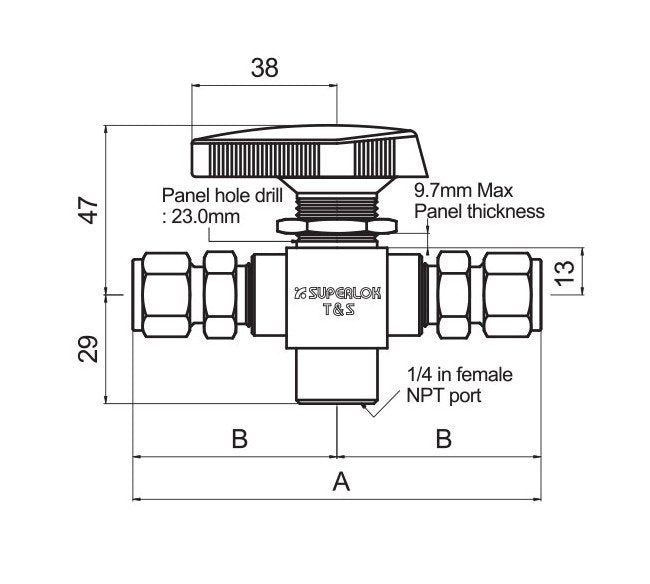

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Configurations
Three-Way Valve
Technical Specs Body Material
Stainless Steel
Technical Specs Dimension A
105 mm
Technical Specs Dimension B
52.6 mm
Technical Specs Flow Coefficients Cv
0.75
Technical Specs Inlet End Connections
1/4 in. SUPERLOK®
Technical Specs Orifice Size
3.8 mm
Technical Specs Outlet End Connections
1/4 in. SUPERLOK®
Technical Specs Port Connections
1/8 to 1/2 in. and 6 to 12mm Superlok® Tube Fitting or Female National Pipe Thread (FNPT) end connection
Technical Specs Pressure Rating With Polychlorotrifluoroethylene
6000 psi | 414 bar
Technical Specs Temperature Rating
0 to 450 ºF | -17 to 232 ºC
