SBT Series Trunnion Ball Valve with 4.8mm Orifice & 10mm Superlok® Connections
SBT Series Trunnion Ball Valve with 4.8mm Orifice & 10mm Superlok® Connections
SKU:SBT-1e83bd
Reliable high-pressure valve with 4.8mm orifice, 10mm Superlok® connections, and PEEK trunnion bearings.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
SBT Series Trunnion Ball Valve with 4.8mm Orifice & 10mm Superlok® Connections
$249.99
Quantity: 1
Claim Your Seller Account
SBT Series Trunnion Ball Valve with 4.8mm Orifice & 10mm Superlok® Connections
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBT Series 4.8mm Orifice and 10mm SUPERLOK® Inlet End Connections Two-Way Trunnion Ball Valve is engineered for high-pressure applications, offering reliable shut-off and switching functions. Featuring PEEK trunnion bearings for extended cycle life, this Stainless Steel valve with spring-loaded seats ensures low operating torques at up to 6000 psi. Its compact design, blow-out resistant ball/stem, and panel mountability make it ideal for extreme conditions, meeting the needs of both consumer and government buyers.
Product Specifications
Features Features
PEEK trunnion bearings for longer cycle lifeTwo-way and three way designsBlow-out resistant two-piece ball/stemLow operating torquePanel mountable to 9.7mm thicknessHandle indicates direction of flowPositive handle stops100% factory testedCompact, maximum flow design
Note Note

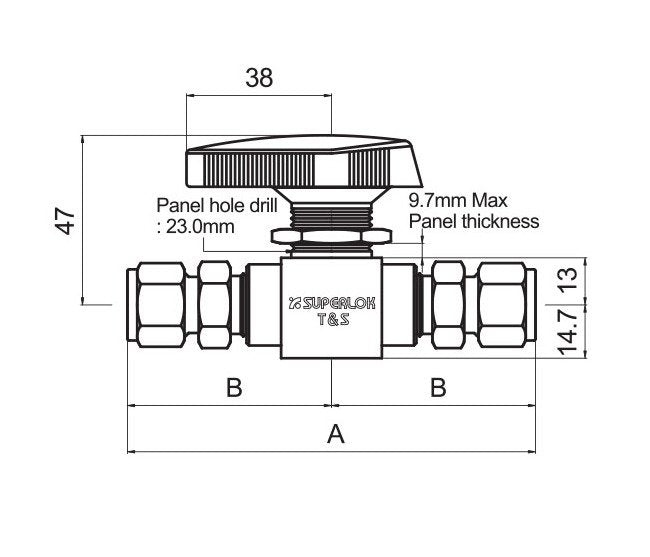

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Configurations
Two-Way Valve
Technical Specs Body Material
Stainless Steel
Technical Specs Dimension A
112 mm
Technical Specs Dimension B
55.9 mm
Technical Specs Flow Coefficients Cv
1.3
Technical Specs Inlet End Connections
10 mm Superlok®
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
10 mm Superlok®
Technical Specs Port Connections
1/8 to 1/2 in. and 6 to 12mm Superlok® Tube Fitting or Female National Pipe Thread (FNPT) end connection
Technical Specs Pressure Rating With Polychlorotrifluoroethylene
6000 psi | 414 bar
Technical Specs Temperature Rating
0 to 450 ºF | -17 to 232 ºC
