SBTH Series 4.8mm Trunnion Ball Valve with 8mm Superlok® Connections
SBTH Series 4.8mm Trunnion Ball Valve with 8mm Superlok® Connections
SKU:SBT-2b680b
Reliable SBTH Series Trunnion Ball Valve with 4.8mm Orifice & 8mm Superlok® Connections for high-pressure applications.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
SBTH Series 4.8mm Trunnion Ball Valve with 8mm Superlok® Connections
$289.99
Quantity: 1
Claim Your Seller Account
SBTH Series 4.8mm Trunnion Ball Valve with 8mm Superlok® Connections
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBTH Series Trunnion Ball Valve is a reliable solution for high-pressure applications, featuring PEEK trunnion bearings for extended cycle life and low operating torque. With a pressure rating of 6000 psi, stainless steel body, and compact design, this valve ensures efficient shut-off or switching functions in extreme conditions. Its two-way configuration, blow-out resistance, and panel mountable design make it suitable for diverse industrial settings, offering durability and high performance. Ideal for pressures up to 10,000 psig, this valve is a dependable choice for critical operations.
Product Specifications
Features Features
PEEK trunnion bearings for longer cycle lifeTwo-way and three way designsBlow-out resistant two-piece ball/stemLow operating torquePanel mountable to 9.7mm thicknessHandle indicates direction of flowPositive handle stops100% factory testedCompact, maximum flow design
Note Note

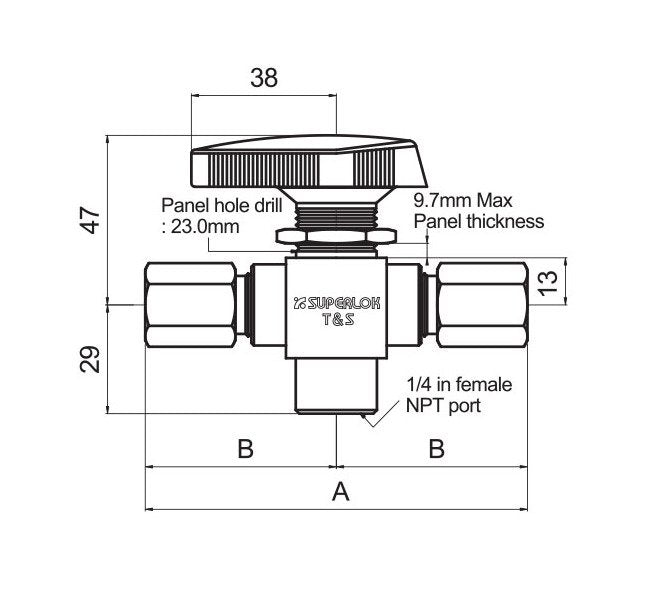

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Configurations
Two-Way Valve
Technical Specs Body Material
Stainless Steel
Technical Specs Dimension A
105 mm
Technical Specs Dimension B
52.6 mm
Technical Specs Flow Coefficients Cv
1.5
Technical Specs Inlet End Connections
8 mm Superlok®
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
8 mm Superlok®
Technical Specs Port Connections
1/8 to 1/2 in. and 6 to 12mm Superlok® Tube Fitting or Female National Pipe Thread (FNPT) end connection
Technical Specs Pressure Rating With Polychlorotrifluoroethylene
6000 psi | 414 bar
Technical Specs Temperature Rating
0 to 450 ºF | -17 to 232 ºC
