SBV210 Series 9.0mm Two-Piece Ball Valve with 1/2" SUPERLOK® End Connections
SBV210 Series 9.0mm Two-Piece Ball Valve with 1/2" SUPERLOK® End Connections
SKU:SBV-616367
SBV210 Series 9.0mm Two-Piece Ball Valve for precise flow control and durability.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
SBV210 Series 9.0mm Two-Piece Ball Valve with 1/2" SUPERLOK® End Connections
$89.99
Quantity: 1
Claim Your Seller Account
SBV210 Series 9.0mm Two-Piece Ball Valve with 1/2" SUPERLOK® End Connections
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SBV210 Series 9.0mm Two-Piece Ball Valve is a robust and reliable solution designed for industrial applications. With a pressure rating of 1000 psig, 69 bar, and an orifice size of 9.0mm, this valve ensures efficient flow control. Constructed from high-quality 316 stainless steel or brass, it offers durability and corrosion resistance. The compact design, low torque operation, and availability of butterfly and lever handles make it versatile for various settings. Tested at the factory, this valve guarantees performance and reliability.
Product Specifications
Features Features
Compact designTight and smooth, low torque and easy operationButterfly and lever handle availableVariety of End ConnectionsEach and every valve is tested at the factory
Note Note

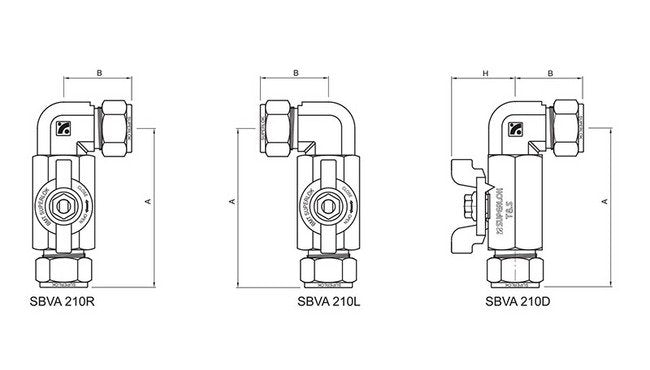

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Body Material
316 Stainless Steel | Brass
Technical Specs Dimension A
87.9 mm
Technical Specs Dimension B
38.1 mm
Technical Specs Dimension H
34.0 mm
Technical Specs End Connections
1/2 in. SUPERLOK®
Technical Specs Handle
Bar Handle | Butterfly Handle (Standard)
Technical Specs Orifice Size
9.0 mm
Technical Specs Pressure Rating At 70 Degree Fahrenheit F 21 Deg
1000 psig | 69 bar
