SCORPION® 2 LITE Temperature Data Logger
SCORPION® 2 LITE Temperature Data Logger
SKU:SCO-439960
Ensure precise temperature monitoring with the SCORPION® 2 LITE Data Logger. Upgradeable to SCORPION® 2 for advanced features.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
SCORPION® 2 LITE Temperature Data Logger
$199.99
Quantity: 1
Claim Your Seller Account
SCORPION® 2 LITE Temperature Data Logger
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

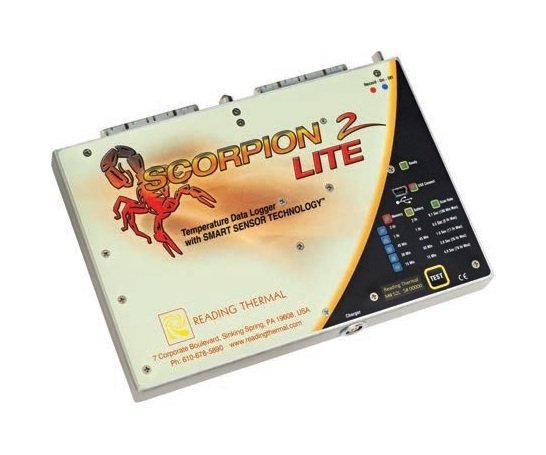

The SCORPION® 2 LITE Temperature Data Logger is a cost-effective solution designed for precise temperature measurement in industrial settings. With compatibility with various temperature measurement devices, including Product Probes and Bare Wire Thermocouples, this data logger ensures accurate data collection and analysis. Featuring a rugged stainless steel enclosure, non-volatile flash memory, and a battery running time of 50+ hours, it is ideal for applications such as quality assurance, line start-up, product consistency monitoring, commissioning, maintenance, and new product development. Upgradeable to the full-featured SCORPION® 2 Data Logger, this device simplifies data capture and analysis for improved process optimization.
Product Specifications
Additional Information
The SCORPION® 2 LITE Data Logger contains an onboard User Interface which enables data collection without the need of a computer on the factory floor. Immediately upon connecting a Smart Sensor, a communication link is established between the data logger and sensor and a self-test is initiated. The result of this test is indicated by a Ready Light, allowing the user to confidently proceed with data collection knowing that all data logger and sensor parameters are within operational limits. Pressing the TEST button displays the Memory and Battery capacity, cautioning the user as the minimum amount of time remaining drops below two hours. The TEST button is also used to select a Scan Rate of 0.1, 0.5, 1, 2, or 4 seconds.The SCORPION® 2 LITE Data Logger is upgradable to the full featured SCORPION® 2 Data Logger
Applications
Quality AssuranceRecord your processing conditions when your product quality is within specification. Save these profiles for future reference as "target" conditions. Use the SPC function included in the software to establish upper and lower control limits for your process temperature, air velocity, heat flux and humidity profiles.Line Start-upTake a SCORPION® 2 profile a few minutes before introducing product into a process. This is a good check that the process has reached the correct operating conditions before production is started.Product Consistency Line-to-LineCompare SCORPION® 2 profiles for two process ovens, perhaps in different factories, that are supposed to be making the same product.Commissioning and MaintenanceHeat process ovens usually include dampers and other controls that must be set by the installation engineer. Use SCORPION® 2 to check that these have been set correctly. Repeat the profiles as part of your preventative maintenance program to detect drift in zone conditions and to pin-point the cause of problems when they do occur.Analyze Equipment PerformanceMost oven manufacturers now use SCORPION® 2 to design their heat processes. This is an invaluable tool for design engineers to balance heat and airflow across the width and along the length of the process oven.Optimize Food Safety and ThroughputControlling internal food temperature is key to achieving food safety. Today's food processors must also document how they are meeting food safety requirements with data. The SCORPION® 2 Data Logging Measurement System makes both jobs easier.The SCORPION® 2 Data Logger with R&D Smart Sensor and Product Probes simplifies the measurement of environment temperature, airflow, energy transfer and internal product core temperature. Plus the SCORPION® 2 Software (SV8) calculates and displays the % kill for a specified pathogen reduction level.By combining this ease of measurement with robust data capture, the SCORPION® 2 System enables better process optimization. No other system makes achieving desired levels of food safety and throughput so simple.New Product DevelopmentUse SCORPION® 2 to record the processing conditions you develop in the lab or in a pilot plant. Then use SCORPION® 2 again to establish the same conditions as the new product is transferred to a full-scale production line.
Technical Summary Accuracy
1.0 ºC | 1.8 ºF
Technical Summary Battery Capacity
2200 mA·h
Technical Summary Battery Running Time
50+ hour
Technical Summary Battery Voltage
7.2 V
Technical Summary Enclosure Material
Rugged Stainless Steel
Technical Summary Input Channels
32
Technical Summary Input Temperate Range
-260 to 1378 ºC | -436 to 2513 ºF
Technical Summary Maximum Memory Capacity
Up to 100 min at 0.1 sec Scan Rate | Up to 17 hrs at 1 sec Scan Rate | Up to 35 hrs at 2 sec Scan Rate | Up to 70 hrs at 4 sec Scan Rate | Up to 8 hrs at 0.5 sec Scan Rate
Technical Summary Memory Type
Non-Volatile Flash
Technical Summary Optional Thermocouple Input Type
Type J | Type K
Technical Summary Pc Communication Link
Universal Serial Bus (USB 2.0)
Technical Summary Resolution
0.025 ºC | 0.045 ºF
Technical Summary Scan Interval
0.1 second | 0.5 second | 1.0 second | 2.0 second | 4.0 second
Technical Summary Sensor Interface
32-Pin D-Sub Connectors
Technical Summary Thermocouple Input Type
Type T
Technical Summary Time Tracking
Onboard Real Time Clock - Time / Date
