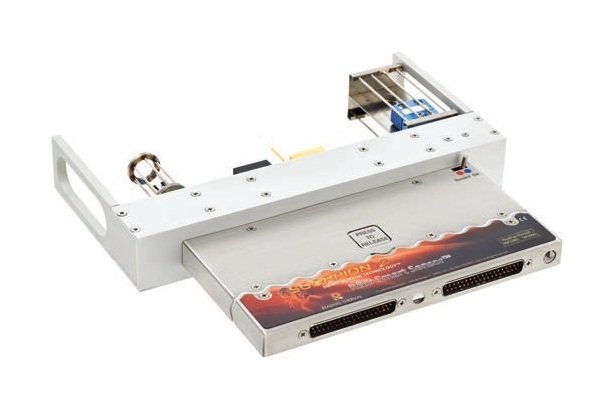

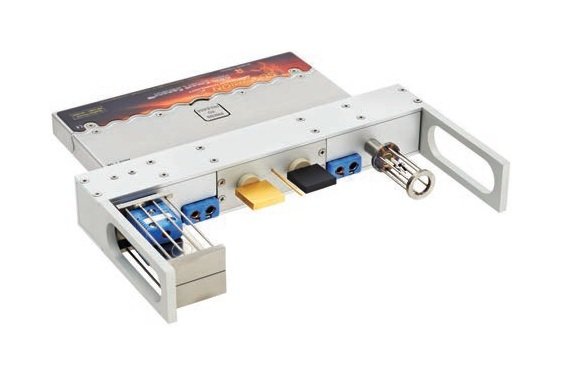

The SCORPION® 2 R&D Smart Sensor is a cutting-edge multi-element sensor designed to streamline data collection in industrial baking processes. With the capability to simultaneously capture Environment Temp, Product Core Temp, Airflow, and Energy Transfer in a single pass through an oven, this sensor eliminates the need for multiple passes. Featuring high precision Type T Thermocouple sensors, ultra-fast response times, and exceptional accuracy, this sensor simplifies quality assurance, process optimization, equipment performance analysis, and food safety compliance. Compact and versatile, the SCORPION® 2 R&D Smart Sensor is ideal for R&D engineers, corporate bakers, and food processors seeking enhanced efficiency and reliable data insights.
Product Specifications
Additional Information

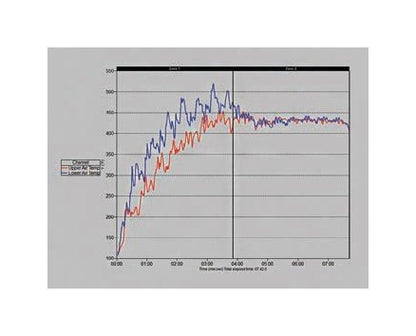

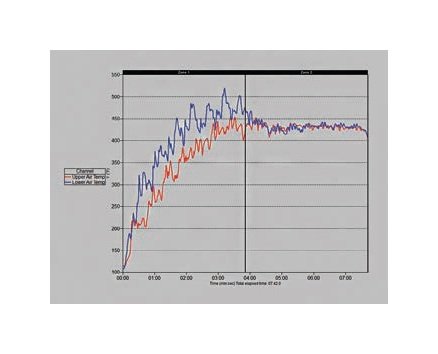

The SCORPION® 2 R&D Smart Sensor is best used by the R&D/Corporate Engineer who needs the ability to quickly profile an oven. This person is interested in benchmarking an oven for R&D purposes, product development, product transfer and oven matching across the company's baking platforms. This person is not interested in studying side-to-side temperature or airflow variation which would require individual, much larger, temperature and air velocity sensor arrays to span the conveyor width.There are two types of Pluggable Temperature Sensors available:Type A, used on solid or tight mesh conveyors, is an Air/Band sensor designed to measure air temperature immediately above the conveyor, and surface temperature of the conveyor itself. Type A can only be used with the THB40 & THB50 Thermal Barriers.Type B, used on open mesh conveyors, is an Air/Air sensor designed to measure upper air temperature immediately above the conveyor, and lower air temperature of the air rising through the conveyor. The upper and lower thermocouples are separated by a thin shield.A multi-element sensor enabling the collection of 4 key baking parameters (Temp, Airflow, Heat Flux and Product Core Temp) in a single pass through an oven.
Air Velocity Sensor Direction Of Measurement
Omnidirectional
Air Velocity Sensor Full Scale Accuracy
5 %
Air Velocity Sensor Range
0 to 10 m/s | 0 to 1969 ft/min
Air Velocity Sensor Reading Resolution
~2 %
Air Velocity Sensor Sensor Type
Miniature Hot-Wire Anemometer using Type T Thermocouples
Applications
Quality AssuranceRecord your processing conditions when your product quality is within specification. Save these profiles for future reference as "target" conditions. Use the SPC function included in the software to establish upper and lower control limits for your process temperature, air velocity, heat flux and humidity profiles.Line Start-upTake a SCORPION® 2 profile a few minutes before introducing product into a process. This is a good check that the process has reached the correct operating conditions before production is started.Product Consistency Line-to-LineCompare SCORPION® 2 profiles for two process ovens, perhaps in different factories, that are supposed to be making the same product.Commissioning and MaintenanceHeat process ovens usually include dampers and other controls that must be set by the installation engineer. Use SCORPION® 2 to check that these have been set correctly. Repeat the profiles as part of your preventative maintenance program to detect drift in zone conditions and to pin-point the cause of problems when they do occur.Analyze Equipment PerformanceMost oven manufacturers now use SCORPION® 2 to design their heat processes. This is an invaluable tool for design engineers to balance heat and airflow across the width and along the length of the process oven.Optimize Food Safety and ThroughputControlling internal food temperature is key to achieving food safety. Today's food processors must also document how they are meeting food safety requirements with data. The SCORPION® 2 Data Logging Measurement System makes both jobs easier.The SCORPION® 2 Data Logger with R&D Smart Sensor and Product Probes simplifies the measurement of environment temperature, airflow, energy transfer and internal product core temperature. Plus the SCORPION® 2 Software (SV8) calculates and displays the % kill for a specified pathogen reduction level.By combining this ease of measurement with robust data capture, the SCORPION® 2 System enables better process optimization. No other system makes achieving desired levels of food safety and throughput so simple.New Product DevelopmentUse SCORPION® 2 to record the processing conditions you develop in the lab or in a pilot plant. Then use SCORPION® 2 again to establish the same conditions as the new product is transferred to a full-scale production line.

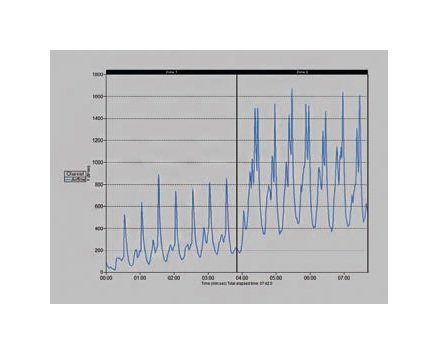

Heat Flux Sensor Convection Heat Flux
Qc (Btu/hr ft² or kW/m²)
Heat Flux Sensor Convective Air Temperature
Tc (ºF or ºC)
Heat Flux Sensor Convective Heat Transfer Coefficient
Hc (Btu/hr ft² ºF or kW/m² ºC)
Heat Flux Sensor Full Scale Accuracy Heat Flux Sensor
5 %
Heat Flux Sensor Number Of Channels Displayed
8
Heat Flux Sensor Number Of Sensor Elements
3
Heat Flux Sensor Perceived Radiation Temperature
Tr (ºF or ºC)
Heat Flux Sensor Radiation Heat Flux
Qr (Btu/hr ft² or kW/m²)
Heat Flux Sensor Sensor Type Heat Flux Sensor
Type T Thermocouples

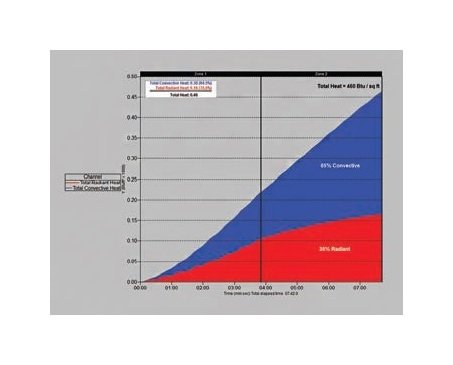

Heat Flux Sensor Total Convective And Radiant Heat
Btu/ft² or kJ/m²
Heat Flux Sensor Total Heat Flux
Qt = Qr + Qc (Btu/hr ft² or kW/m²)

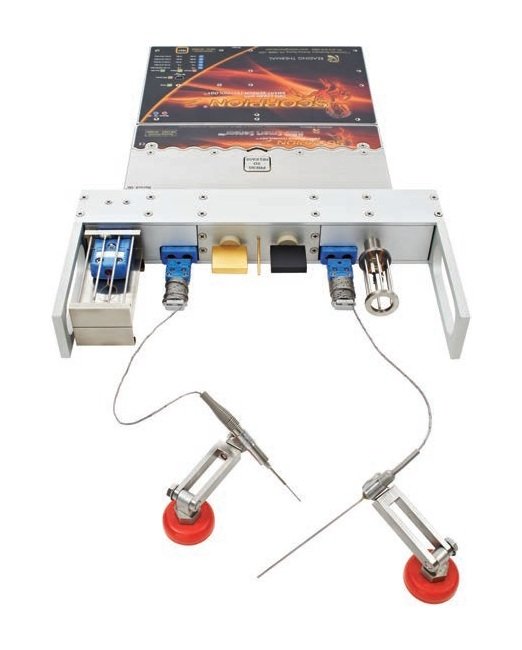

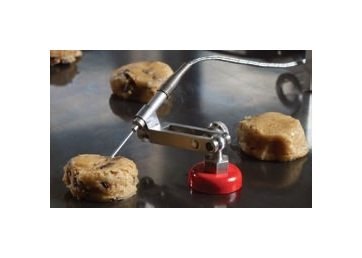

Product Probe Interface Accuracy Product Probe Interface
1.0 ºC | 1.8 ºF
Product Probe Interface Number Of Product Probe Inputs Channels
2
Product Probe Interface Product Probe Sensor Type
Type T Thermocouple (Type J&K Optional)
Product Probe Interface Resolution Product Probe Interface
0.025 ºC | 0.045 ºF
Specifications Headroom Size
2 in | 40 mm
Specifications Width
10 in | 254 mm
System Battery Running Time
7+ hour
System Operating Temperature Range
-50 to 350 ºC | -58 to 662 ºF
Temperature Sensors Accuracy Temperature Sensor
1.0 ºC | 1.8 ºF
Temperature Sensors Resolution Temperature Sensor
0.025 ºC | 0.045 ºF
Temperature Sensors Temperature Sensor Type
Type T Thermocouple
