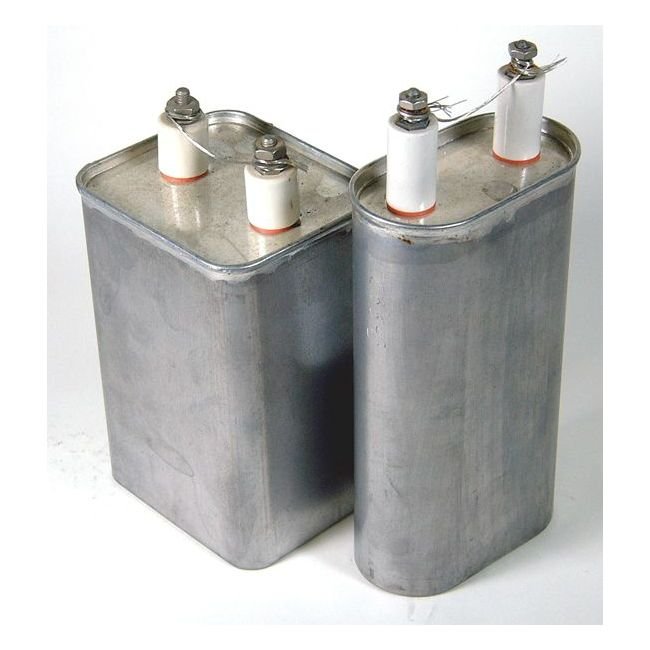

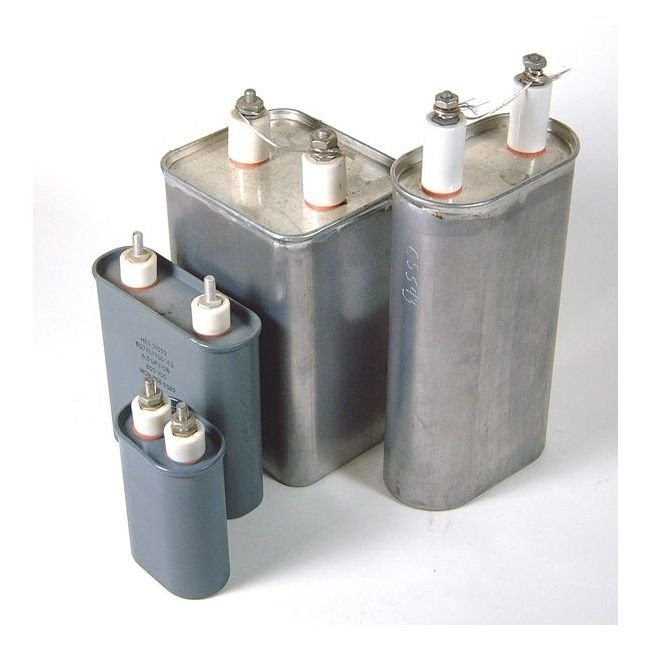

SCR Series Drawn Oval Can Oil-Filled Capacitor 2µF 1000V
SCR Series Drawn Oval Can Oil-Filled Capacitor 2µF 1000V
SKU:OIL-742eb0
High-performance SCR Series Drawn Oval Can Oil-Filled Capacitor - 2µF, 1000V. Reliable and efficient for diverse applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
SCR Series Drawn Oval Can Oil-Filled Capacitor 2µF 1000V
$49.99
Quantity: 1
Claim Your Seller Account
SCR Series Drawn Oval Can Oil-Filled Capacitor 2µF 1000V
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SCR Series Drawn Oval Can Oil-Filled Capacitor delivers exceptional performance for high voltage applications. With a capacitance range of 0.25 to 15 µF and a voltage rating of 1000 VDC, this capacitor ensures reliable operation in demanding environments. Constructed with drawn plated steel cans and featuring kraft paper and polypropylene dielectric with environmentally compatible impregnant, it offers superior durability and efficiency. The capacitor complies with industry standards, making it an ideal choice for both consumer and institutional buyers seeking high-quality components for various applications.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Can Construction
Drawn Plated Steel Cans (Welded Steel, Aluminum or Stainless Steel Available) | Epoxy Paint
Specifications Cap
2 µF
Specifications Capacitance Range
0.25 to 15 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

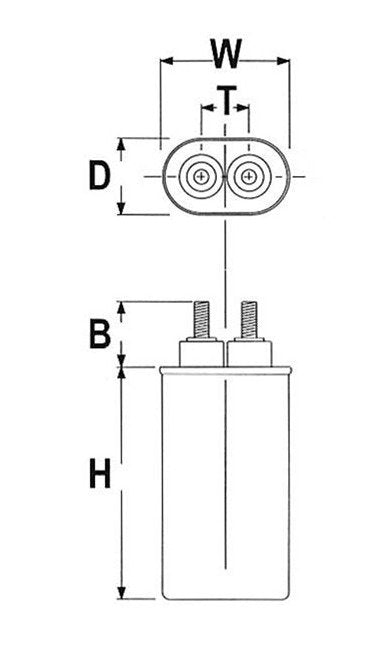

Specifications Dimension B
1.25
Specifications Dimension D
1.31
Specifications Dimension H
2.13
Specifications Dimension T
0.81
Specifications Dimension W
2.19
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Shape
Oval
Specifications Voltage Dc
1000 V
