SCR Series Drawn Oval Capacitor - 0.5 µF, 3000 VDC
SCR Series Drawn Oval Capacitor - 0.5 µF, 3000 VDC
SKU:OIL-911a6c
Optimize your system with the SCR Series Drawn Oval Capacitor - 0.5 µF, 3000 VDC. High performance, dependable quality.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SCR Series Drawn Oval Capacitor - 0.5 µF, 3000 VDC
$29.99
Quantity: 1
Claim Your Seller Account
SCR Series Drawn Oval Capacitor - 0.5 µF, 3000 VDC
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

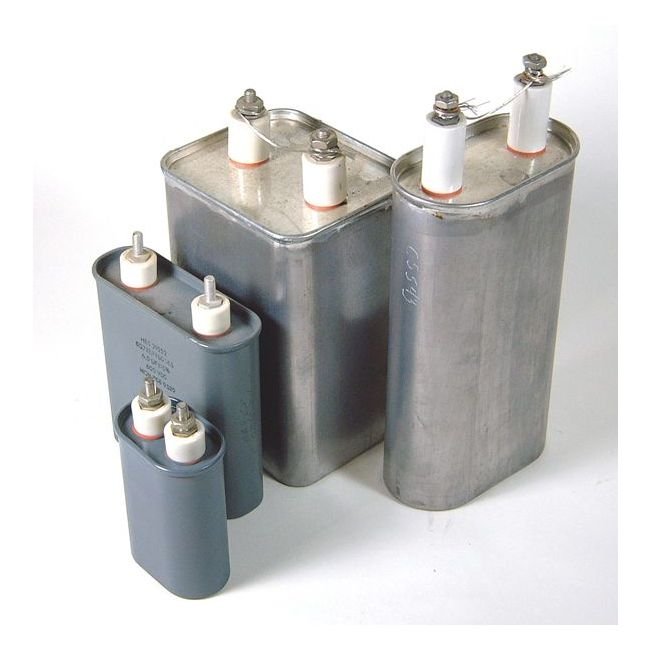

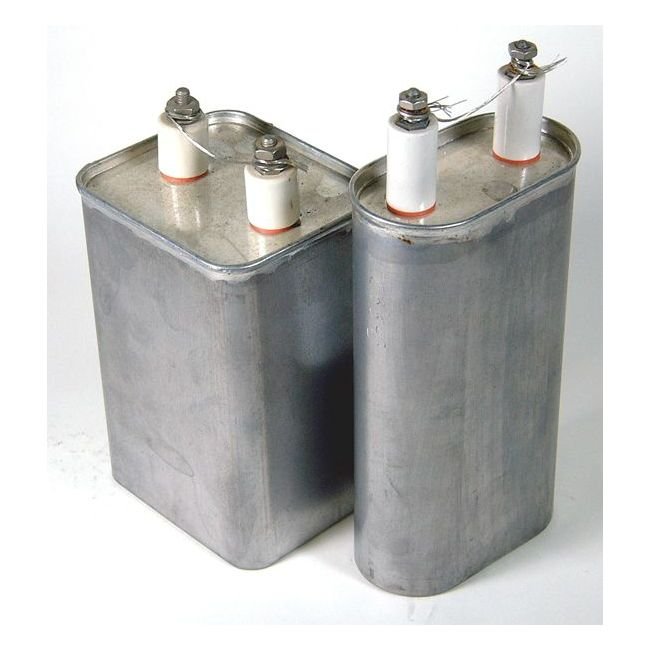

Enhance your electrical systems with the SCR Series Drawn Oval Capacitor. This oil-filled high voltage capacitor features a capacitance range of 0.25 to 15 µF, ensuring reliable performance. With a sturdy construction of drawn plated steel cans and kraft paper-polypropylene dielectric, this capacitor offers high insulation resistance and operates in temperatures from -40 to +90 ºC. Compliant with stringent standards, including Faraday cages and voltage specifications, this capacitor is ideal for industrial and government applications.
Product Specifications
Specifications Ac Ripple Voltage
The sum of the DC voltage and peak AC ripple should not exceed the capacitor's VDC rating.Additionally, the AC component should not exceed:20 % of VDC at 60 Hz10 % of VDC at 400 Hz5 % of VDC at 1 kHz1% of VDC at 10 kHz
Specifications Can Construction
Drawn Plated Steel Cans (Welded Steel, Aluminum or Stainless Steel Available) | Epoxy Paint
Specifications Cap
0.5 µF
Specifications Capacitance Range
0.25 to 15 µF
Specifications Capacitance Tolerance
±10% Standard
Specifications Dielectric
Kraft paper and polypropylene with environmentally compatible impregnant

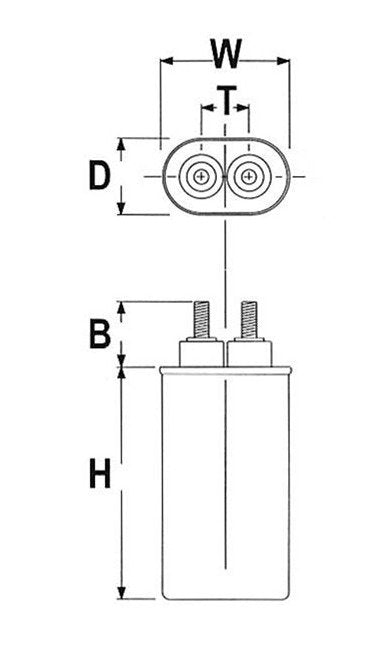

Specifications Dimension B
1.25
Specifications Dimension D
1.91
Specifications Dimension H
2.75
Specifications Dimension T
1.38
Specifications Dimension W
2.91
Specifications Insulation Resistance At 25c Typical
25000 MΩ
Specifications Operating Temperature
-40 to +90 ºC
Specifications Shape
Oval
Specifications Voltage Dc
3000 V
