SCV® 1.5" NPT 316 SS Threaded In-Line Check Valve

SCV® 1.5" NPT 316 SS Threaded In-Line Check Valve

INL-fa53b8

Dependable SCV® 1.5" NPT 316 SS Check Valve for precise shut-off & corrosion resistance.

$299.99
$299.99
Sale

Initiate Order

SCV® 1.5" NPT 316 SS Threaded In-Line Check Valve

SCV® 1.5" NPT 316 SS Threaded In-Line Check Valve

$299.99

Quantity: 1

Claim Your Seller Account

SCV® 1.5" NPT 316 SS Threaded In-Line Check Valve

SCV® 1.5" NPT 316 SS Threaded In-Line Check Valve

$299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

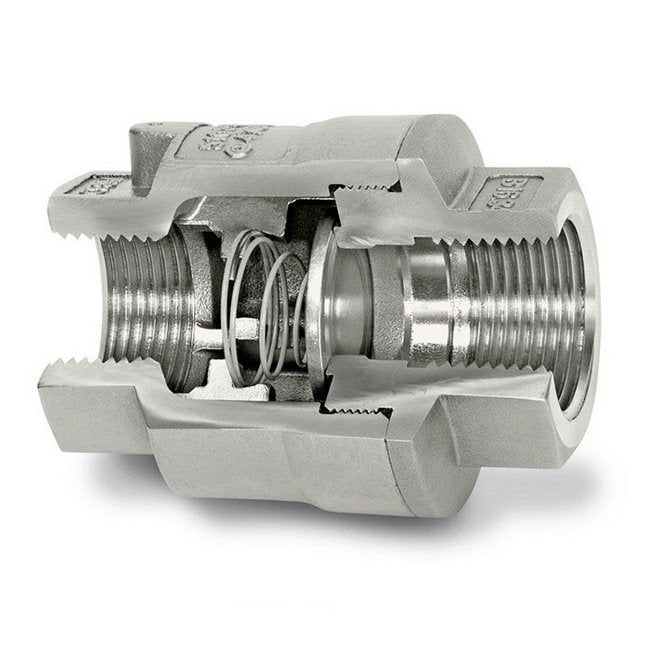

The SCV® 1.5" NPT 316 SS Threaded In-Line Check Valve is a corrosion-resistant, versatile, and economical solution suitable for various applications. With a Cold Working Pressure of 750 psig and a temperature rating of -70 to 250 °F, this valve ensures reliable performance. Features include a durable 316 Stainless Steel construction, tight shut-off to prevent water hammer, and a spring-assisted closing mechanism. Meeting ANSI, MSS, and ASTM standards, it is ideal for applications like boiler feed, chemical lines, cooling towers, and more.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Application 0
Autoclaves | Boiler Feed & Discharge | Chemical Lines | Compressor Discharge | Condensate Lines | Cookers | Cooling Towers | Crude & Refined Product Lines | Cryogenics | Digester | Evaporators | Fly Ash System | Generator Inlet & Discharge | Hydraulic Lines | Metering Pumps | Mine Dewatering | Nitrogen Purge | Process Lines | Pump Discharge | Refrigeration | Steam Lines | Vacuum Breaker | Water Lines | Water Treatment
Available Soft Seat Materials Available Soft Seat Materials
Buna-N (-70 to 250ºF) | EPDM (-75 to 300ºF) | TFE®-Viton® (-40 to 400ºF) | Viton® (-40 to 400ºF) | Zelon® (37 to 470ºF)
Codes And Standards Ansi
B1.1 | B1.20.1 | B16.11 | B16.25 | B16.34
Codes And Standards Astm
A351GR CF8M
Codes And Standards Mss
SP-126 | SP-25 | SP-61
Features 0

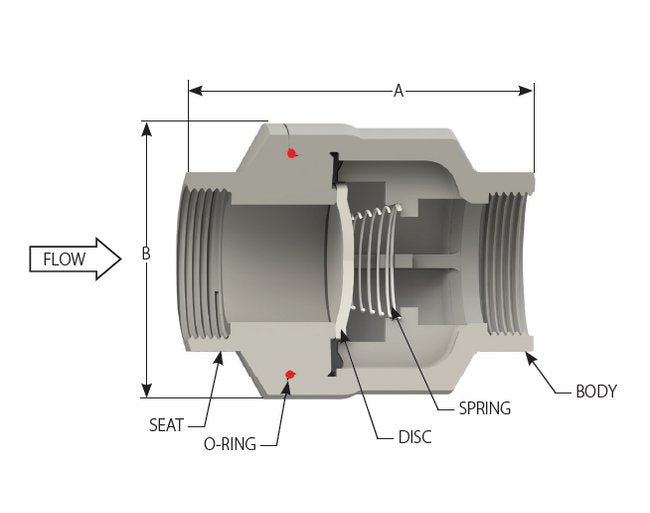

1/2" to 3" Line size750 & 3600 CWPNPT & SW endsStainless Steel ConstructionInconel® X-750 springSpring-assisted silent closing, non-slamZelon® body "O" ring body sealHorizontal or vertical installationBody guided discTight shut-off - lapped disc & seatSimplified construction - 5 partsEasy maintenanceVersatile
Materials Of Construction Body
A351 CF8M
Materials Of Construction Body Material
316 Stainless Steel
Materials Of Construction Body Seal
Buna
Materials Of Construction Disc
316 SS
Materials Of Construction Seat
A351 CF8M/Buna
Materials Of Construction Spring
Inconel® X-750
Old Npt Old Part
8373N-49
Options 0
316 SS SpringsBody seal weld (700°F Maximum)Soft seatAlloy 20 body & seat (ASME 300)Hastelloy C body & seat (ASME 300)Socket weld endsSCV-R restrictor check (higher cracking pressure)Butt weld endsNACELight cracking pressure springs
Specifications Asme Class
300
Specifications B Dia
3.44 in | 87 mm
Specifications Cold Working Pressure
750 psig | 51.7 barg
Specifications Cracking Pressure Cp
0.24 psig | 0.017 bar
Specifications Cv
54
Specifications Dimension A
4.75 in | 121 mm
Specifications Dimension B
3.44 in | 87 mm
Specifications Ends
NPT (Threaded)
Specifications Other
API PED
Specifications Repair Kit Available
8373-RK, Repair Kits
Specifications Series
SCV®
Specifications Size
1.50 in | DN 40
Specifications Temperature Rating
-70 to 250 ºF | -56.67 to 121.11 ºC
Specifications Trim
316 SS
Specifications Valve Type
Check Valve
Specifications Weight
4.7 lb | 2.1 kg
Specifications Working Steam Pressure
610 psig
Valve Selection Chart Asme Cwp
300 | 750
