SCV-R® In-Line Restrictor Check Valve - 1/2" NPT, 316 SS, 750 psig
SCV-R® In-Line Restrictor Check Valve - 1/2" NPT, 316 SS, 750 psig
SKU:INL-1d4fc2
High-performance SCV-R® Check Valve for demanding applications. Stainless Steel construction with 1 psig Cracking Pressure. ASTM, ANSI, MSS compliant.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
SCV-R® In-Line Restrictor Check Valve - 1/2" NPT, 316 SS, 750 psig
$99.99
Quantity: 1
Claim Your Seller Account
SCV-R® In-Line Restrictor Check Valve - 1/2" NPT, 316 SS, 750 psig
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

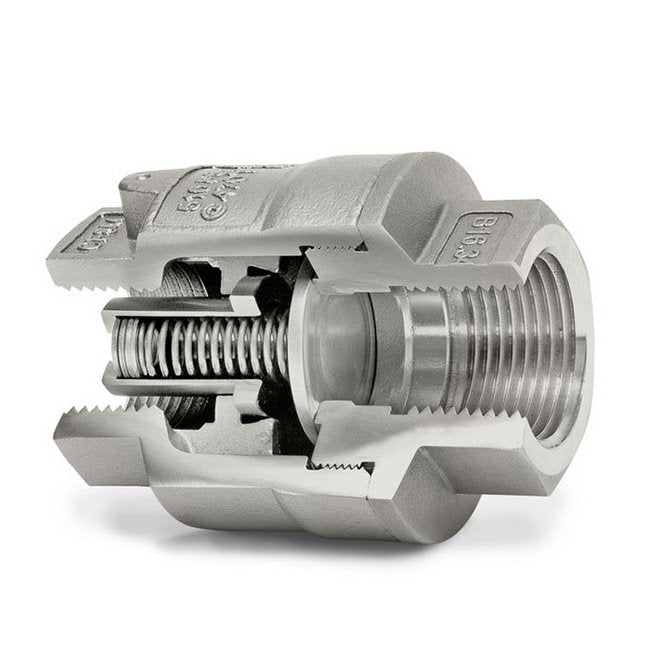

The SCV-R® In-Line Restrictor Check Valve is a high-performance valve suitable for applications with demanding cracking pressure requirements. Crafted from durable 316 Stainless Steel, it features a Spring-assisted design for silent closing, ensuring non-slam operation. With a Cracking Pressure of 1 psig, this valve offers reliable performance in temperatures ranging from 37 to 470°F. Compliant with ASTM, ANSI, and MSS standards, this valve is ideal for various applications including chemical lines, compressor discharge, and water treatment.
Product Specifications
Application 0
Autoclaves | Boiler Feed & Discharge | Chemical Lines | Compressor Discharge | Condensate Lines | Cookers | Cooling Towers | Crude & Refined Product Lines | Cryogenics | Digester | Evaporators | Fly Ash System | Generator Inlet & Discharge | Hydraulic Lines | Metering Pumps | Mine Dewatering | Nitrogen Purge | Process Lines | Pump Discharge | Refrigeration | Steam Lines | Vacuum Breaker | Water Lines | Water Treatment
Codes And Standards Ansi
B1.1 | B1.20.1 | B16.11 | B16.25 | B16.34
Codes And Standards Astm
A351GR CF8M
Codes And Standards Mss
SP126 | SP-25 | SP61
Features 0
1/2" to 2" Line size750 CWPNPT & SW endsStainless Steel ConstructionInconel® X-750 springSpring-assisted silent closing, non-slamCracking Pressures: 0.8 to 40.8 psigZelon® body "O" ringHorizontal or vertical installationBody guided discTight shut-off - lapped disc & seatSimplified construction - 5 partsEasy maintenanceVersatileInconel® X-750 spring is standard

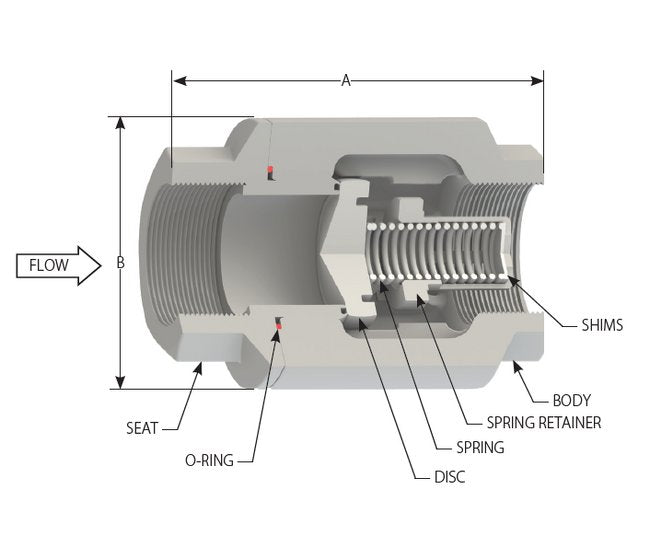

Materials Of Construction Body
A351 CF8M
Materials Of Construction Body Material
316 Stainless Steel
Materials Of Construction Disc
316 SS
Materials Of Construction O Ring
Zelon (470°F max.)
Materials Of Construction Seat
316 SS
Materials Of Construction Spring
Inconel® X-750

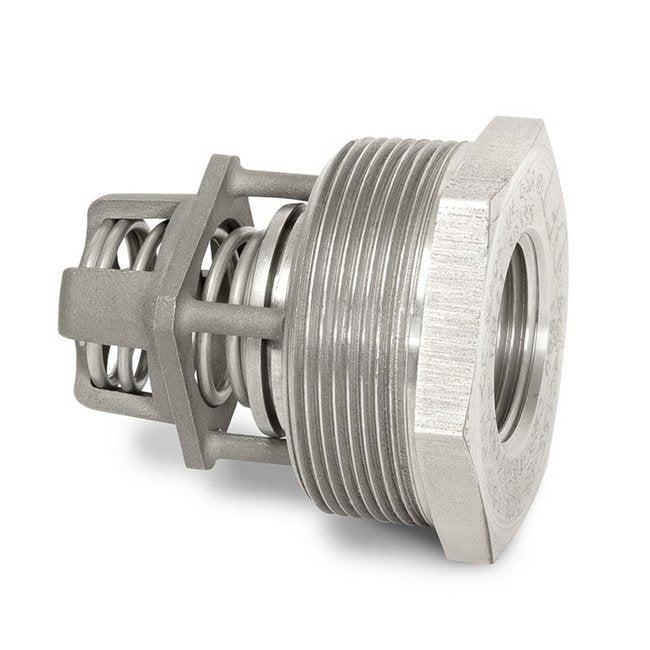

Materials Of Construction Spring Retainer Assembly
316 SS
Old Npt Old Part
8317-RC010
Options 0
316 SS SpringsBody seal weld (700°F Maximum)Soft seatAlloy 20 body & seat (ASME 300)Hastelloy C body & seat (ASME 300)NPT x socket weld endsButt weld endsRepair kitsField conversion kits
Specifications Available Soft Seat Materials
TFE®-Viton® (-40 to 400ºF) | Viton® (-40 to 400ºF) | Zelon® (37 to 470ºF)
Specifications Body Seal
Zelon® O-ring
Specifications B Dia
1.62 in | 41 mm
Specifications Cold Working Pressure
750 psig | 51.7 barg
Specifications Cracking Pressure Cp
1 psig | 0.069 bar
Specifications Cracking Pressure Cp Tolerance
±10%
Specifications Cv
6
Specifications Dimension A
2.68 in | 68 mm
Specifications Ends
NPT (Threaded)
Specifications Series
SCV-R®
Specifications Size
0.50 in | DN 15
Specifications Temperature Rating
37 to 470 ºF | 2.78 to 243.33 ºC
Specifications Weight
1.1 lb | 0.5 kg
Specifications Working Steam Pressure
510 psig
