Sealtite® Type CNP Non-Metallic Liquid-Tight Conduit - 2-inch, Orange
Sealtite® Type CNP Non-Metallic Liquid-Tight Conduit - 2-inch, Orange
SKU:LIQ-036f13
Sealtite® CNP 2" Non-Metallic Liquid-Tight Conduit, UL Listed & CSA Certified, Temperature Range -4ºF to +140ºF
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Sealtite® Type CNP Non-Metallic Liquid-Tight Conduit - 2-inch, Orange
$99.99
Quantity: 1
Claim Your Seller Account
Sealtite® Type CNP Non-Metallic Liquid-Tight Conduit - 2-inch, Orange
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

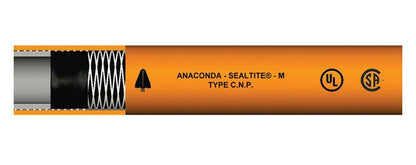

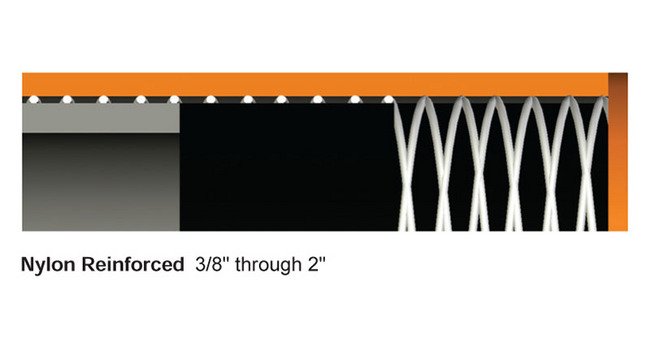

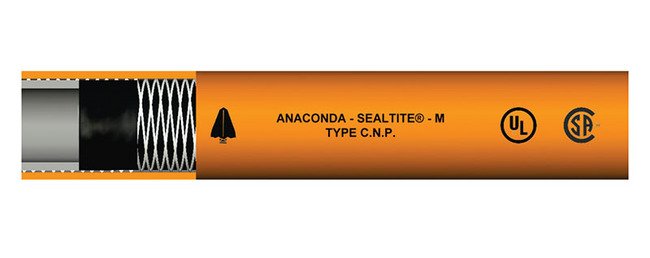

The Sealtite® Type CNP Non-Metallic Liquid-Tight Conduit is a top-of-the-line solution designed for demanding applications. This conduit features a smooth inner PVC core, oil-resistant and sunlight-resistant PVC outer cover, and a nylon reinforcing layer for added durability. Approved fittings ensure a liquid-tight raceway for wiring, suitable for temperatures ranging from -4ºF to +140ºF. With UL and CSA certifications as a Type 'A' non-metallic conduit, this product meets stringent industry standards while providing flexibility, toughness, and resistance to abrasion, crush, and strain.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
Where Abrasion or Physical Abuse are Factors, Constant Flexing or MovementTemperature Range: -4ºF to +140ºF (-20ºC to +60ºC)
Installation 0
Conduit used with standard connectors for non-metallic conduit Type A for easy installation. IP 67 Rated when installed with approved connectors.Approved for both exposed and concealed locations. Rated for temperature ranges of -4ºF to +140ºF (-20ºCto +60ºC).Complies with UL Standard 1660 Type A conduit File No. E-75863; CSA C22.2 File No. LL15257; and NEC Article 356.Easy to install and cuts easily.Manufactured in a full range of trade sizes from 3/8" through 2".Flexible, but tough; crush, abrasion and strain resistant. Where abrasion, physical abuse or constant flexing are a factor.
Nec Articles 0
Article 250.102 Equipment Bonding JumpersArticle 250.134 (B) Equipment GroundingArticle 300.22 (D) Information Technology EquipmentArticle 356 Liquid-Tight Flexible Nonmetallic Conduit (LFNC-A)Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2Article 503.10 (A) (3) and (B) Class III Div. 1 & 2Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors
Specifications Approx Inside Bend Radius
9.0 in | 228.6 mm
Specifications Approx Weight Per 100 Ft
122 lbs | 55.34 kg
Specifications Color
Orange
Specifications Core Material
Polyvinyl Chloride (PVC)
Specifications Cross Reference
6507-24-00 | 87602 | LFNC-A | LNM-P 16
Specifications Electrical Trade Size
2 in | 53 mm
Specifications Industry Certifications
UL Listed & CSA Certified
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
2.045 to 2.080 in | 51.943 to 52.832 mm
Specifications Jacket Benefits
Liquid Tight | Oil Resistant
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
50 ft | 15.24 m
Specifications Note
Colors available on request.
Specifications Optional Colors
Gray
Specifications Outside Diameter
2.605 to 2.640 in | 66.167 to 67.056 mm
Specifications Packaging
Standard Carton
Specifications Type
CNP
