SEALTITE® Type CNP Non-Metallic Liquid-Tight Flexible Conduit

Name: SEALTITE® Type CNP Non-Metallic Liquid-Tight Flexible Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-5cd580
Price: 99.99 USD
Availability: OutOfStock

SKU:LIQ-5cd580

Durable liquid-tight non-metallic conduit for a secure wiring solution in various environments.

$99.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

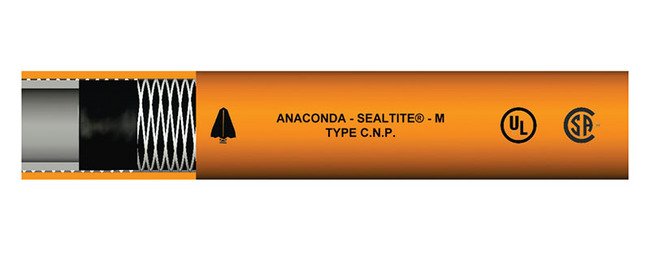

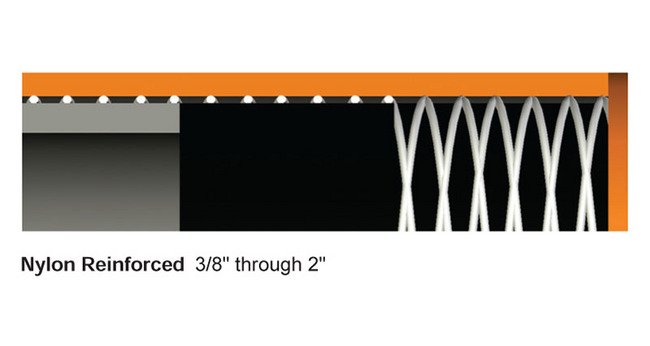

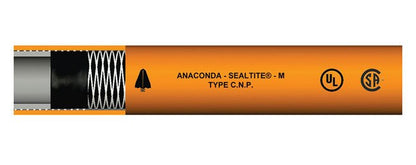

Meet your wiring needs with the SEALTITE® Type CNP Non-Metallic Liquid-Tight Flexible Conduit. This thermoplastic PVC conduit features a smooth inner core and oil/sunlight resistant PVC cover with a nylon reinforcing layer. Approved fittings ensure a liquid-tight raceway. UL listed, CSA certified for Type A non-metallic conduit, IP67 rated, and suitable for -4ºF to +140ºF (-20ºC to +60ºC) applications.

Product Specifications

Application 0

Where Abrasion or Physical Abuse are Factors, Constant Flexing or MovementTemperature Range: -4ºF to +140ºF (-20ºC to +60ºC)

Installation 0

Conduit used with standard connectors for non-metallic conduit Type A for easy installation. IP 67 Rated when installed with approved connectors.Approved for both exposed and concealed locations. Rated for temperature ranges of -4ºF to +140ºF (-20ºCto +60ºC).Complies with UL Standard 1660 Type A conduit File No. E-75863; CSA C22.2 File No. LL15257; and NEC Article 356.Easy to install and cuts easily.Manufactured in a full range of trade sizes from 3/8" through 2".Flexible, but tough; crush, abrasion and strain resistant. Where abrasion, physical abuse or constant flexing are a factor.

Nec Articles 0

Article 250.102 Equipment Bonding JumpersArticle 250.134 (B) Equipment GroundingArticle 300.22 (D) Information Technology EquipmentArticle 356 Liquid-Tight Flexible Nonmetallic Conduit (LFNC-A)Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2Article 503.10 (A) (3) and (B) Class III Div. 1 & 2Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors

Specifications Approx Inside Bend Radius

7.0 in | 177.8 mm

Specifications Approx Weight Per 100 Ft

58 lbs | 26.31 kg

Specifications Color

Orange

Specifications Core Material

Polyvinyl Chloride (PVC)

Specifications Cross Reference

6505-24-00 | 87402 | LFNC-A | LNM-P 14

Specifications Electrical Trade Size

1-1/4 in | 35 mm

Specifications Industry Certifications

UL Listed & CSA Certified

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

1.370 to 1.395 in | 34.798 to 35.433 mm

Specifications Jacket Benefits

Liquid Tight | Oil Resistant

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

50 ft | 15.24 m

Specifications Note

Colors available on request.

Specifications Optional Colors

Gray

Specifications Outside Diameter

1.800 to 1.825 in | 45.720 to 46.355 mm

Specifications Packaging

Standard Carton

Specifications Type

CNP
