Sealtite® Type CNP - Non-Metallic Liquid-Tight Flexible Conduit
Sealtite® Type CNP - Non-Metallic Liquid-Tight Flexible Conduit
SKU:LIQ-6a6d1e
Smooth thermoplastic PVC core, oil-resistant outer cover, liquid-tight wiring raceway, UL listed & CSA certified.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Sealtite® Type CNP - Non-Metallic Liquid-Tight Flexible Conduit
$99.99
Quantity: 1
Claim Your Seller Account
Sealtite® Type CNP - Non-Metallic Liquid-Tight Flexible Conduit
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

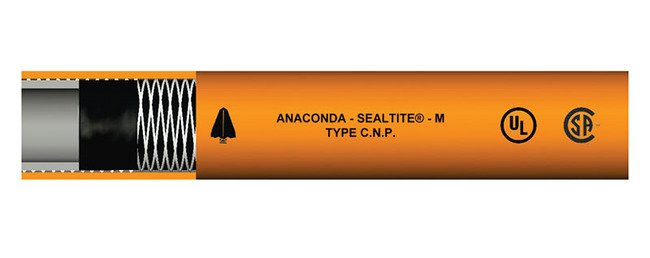

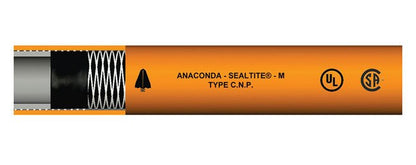

The Sealtite® Type CNP Non-Metallic Liquid-Tight Flexible Conduit is crafted with a smooth inner thermoplastic PVC core and a durable oil and sunlight-resistant PVC outer cover. Designed for easy installation with approved fittings, this conduit provides a liquid-tight raceway for wiring in temperatures ranging from -4ºF to +140ºF (-20ºC to +60ºC). With UL listing and CSA certification as a Type 'A' non-metallic conduit, it meets stringent industry standards. Its flexibility, crush resistance, and abrasion resistance make it ideal for applications where physical durability is crucial.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Application 0
Where Abrasion or Physical Abuse are Factors, Constant Flexing or MovementTemperature Range: -4ºF to +140ºF (-20ºC to +60ºC)
Installation 0
Conduit used with standard connectors for non-metallic conduit Type A for easy installation. IP 67 Rated when installed with approved connectors.Approved for both exposed and concealed locations. Rated for temperature ranges of -4ºF to +140ºF (-20ºCto +60ºC).Complies with UL Standard 1660 Type A conduit File No. E-75863; CSA C22.2 File No. LL15257; and NEC Article 356.Easy to install and cuts easily.Manufactured in a full range of trade sizes from 3/8" through 2".Flexible, but tough; crush, abrasion and strain resistant. Where abrasion, physical abuse or constant flexing are a factor.
Nec Articles 0
Article 250.102 Equipment Bonding JumpersArticle 250.134 (B) Equipment GroundingArticle 300.22 (D) Information Technology EquipmentArticle 356 Liquid-Tight Flexible Nonmetallic Conduit (LFNC-A)Article 501.10 (B) (2) Class I Div. 2 Article 502.10 (A) (2) and (B) (2) Class II Div. 1 & 2Article 503.10 (A) (3) and (B) Class III Div. 1 & 2Article 620.21 Elevator Wiring MethodsArticle 645.5 (E) (2) Under Raised Floors
Specifications Approx Inside Bend Radius
4.0 in | 101.6 mm
Specifications Approx Weight Per 100 Ft
30 lbs | 13.61 kg
Specifications Color
Orange
Specifications Core Material
Polyvinyl Chloride (PVC)
Specifications Cross Reference
6503-30-00 | 87202 | LFNC-A | LNM-P 12
Specifications Electrical Trade Size
3/4 in | 21 mm
Specifications Industry Certifications
UL Listed & CSA Certified
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
0.815 to 0.835 in | 20.701 to 21.209 mm
Specifications Jacket Benefits
Liquid Tight | Oil Resistant
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
100 ft | 30.48 m
Specifications Note
Colors available on request.
Specifications Optional Colors
Gray
Specifications Outside Diameter
1.150 to 1.170 in | 29.210 to 29.718 mm
Specifications Packaging
Small Cartons
Specifications Type
CNP
