Sealtite® Type EF Liquid-Tight Flexible Metal Conduit - 1/2 in x 1000 ft

Name: Sealtite® Type EF Liquid-Tight Flexible Metal Conduit - 1/2 in x 1000 ft
Brand: Anamet Electrical, Inc.
SKU: LIQ-089c71
Price: 799.99 USD
Availability: OutOfStock

SKU:LIQ-089c71

Flexible metal conduit for general construction wiring, liquid-tight, IP 67 rated. Temperature range: -4ºF to +140ºF.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

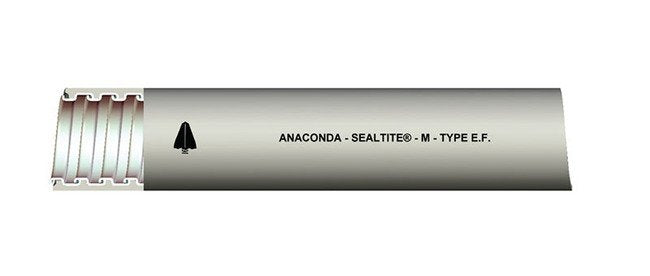

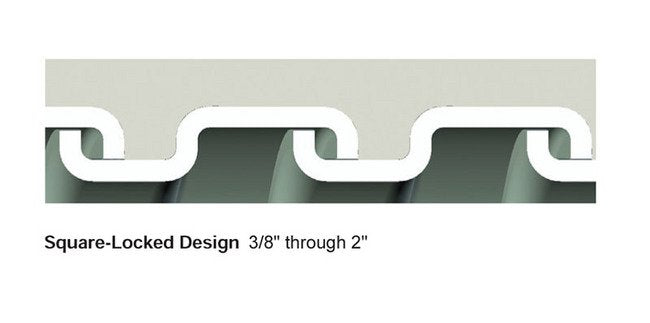

The Sealtite® Type EF Liquid-Tight Flexible Metal Conduit provides a reliable and flexible solution for wiring in general construction applications. With a thermoplastic PVC jacket and a continuously interlocked zinc galvanized steel core, this conduit offers a liquid-tight raceway that is resistant to sunlight. It is IP 67 rated when used with approved end connectors, ensuring superior wiring protection. Suitable for a temperature range of -4ºF to +140ºF, it is designed for various applications where agency approvals are not required. This conduit meets RoHS, WEEE, and industry-specific certifications for quality assurance.

Product Specifications

Application 0

Designed for General Construction Grade ApplicationsTemperature Range: -4ºF to +140ºF (-20ºC to +60ºC)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 2".Smooth appearing jacket for exposed applications.Rated for temperature range of -4ºF to +176ºF (20ºC to +80ºC).Provides liquid-tight raceway for electrical conductors.

Specifications Approx Inside Bend Radius

2.5 in | 63.5 mm

Specifications Approx Weight Per 100 Ft

19 lbs | 8.62 kg

Specifications Color

GRAY

Specifications Core Material

Aluminum

Specifications Cross Reference

Specifications Electrical Trade Size

1/2 in | 16 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

0.620 to 0.640 in | 15.748 to 16.256 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

1000 ft | 304.8 m

Specifications Note

Standard SEALTITE® Type EFST is recommended in sizes above 2"

Specifications Outside Diameter

0.820 to 0.840 in | 20.828 to 21.336 mm

Specifications Packaging

Standard Reels

Specifications Type

Sealtite® Type EF Liquid-Tight Flexible Metal Conduit - 1/2 in x 1000 ft
