SEALTITE® Type OR Liquid-Tight Flexible Metal Conduit

Name: SEALTITE® Type OR Liquid-Tight Flexible Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-836e7b
Price: 149.99 USD
Availability: OutOfStock

SKU:LIQ-836e7b

Flexible and oil-resistant SEALTITE® Type OR Conduit for superior wiring protection in diverse environments. IP 67 rated with easy installation.

$149.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

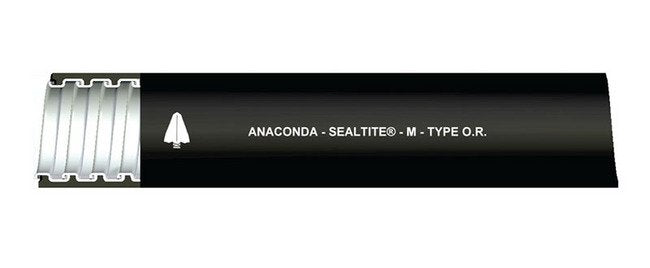

The SEALTITE® Type OR Liquid-Tight Flexible Metal Conduit is specially designed with a thermoplastic PVC jacket and a continuously interlocked hot-dipped zinc galvanized steel core, encased in a sunlight-resistant PVC outer jacket. This conduit provides a flexible and liquid-tight raceway for wiring, ideal for applications where agency approvals are not required. With an IP 67 rating when paired with approved connectors, this conduit ensures superior wiring protection. It offers a temperature range of -9ºF to +221ºF, making it suitable for environments with exposure to cutting oils. Available in various trade sizes, this conduit is easy to install with standard liquid-tight connectors, delivering a smooth appearance suitable for exposed applications.

Product Specifications

Application 0

Where Exposure to Cutting Oils OccurTemperature Range: -9ºF to +221ºF (-23ºC to +105ºC)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 4".Smooth appearing jacket for exposed applications.Rated for temperature range of -9ºF to +221ºF (-23ºC to +105ºC).Provides liquid-tight raceway for electrical conductors.

Specifications Approx Inside Bend Radius

3.0 in | 76.2 mm

Specifications Approx Weight Per 100 Ft

39 lbs | 17.69 kg

Specifications Color

BLACK

Specifications Core Material

Galvanized Steel

Specifications Cross Reference

LOR-12

Specifications Electrical Trade Size

3/4 in | 21 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

0.815 to 0.835 in | 20.701 to 21.209 mm

Specifications Jacket Benefits

Liquid Tight | Oil Resistant

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

100 ft | 30.48 m

Specifications Note

Sizes above 2" available on special order.Type OR-H available as special with heavy plated steel core and integral bonding wire.

Specifications Optional Colors

Gray

Specifications Outside Diameter

1.030 to 1.050 in | 26.162 to 26.670 mm

Specifications Packaging

Small Cartons

Specifications Type

SEALTITE® Type OR Liquid-Tight Flexible Metal Conduit
