Sealtite® Type UA HD - Liquid Tight Metal Conduit (LFMC)

Name: Sealtite® Type UA HD - Liquid Tight Metal Conduit (LFMC)
Brand: Anamet Electrical, Inc.
SKU: LIQ-32a2ba
Price: 329.99 USD
Availability: OutOfStock

SKU:LIQ-32a2ba

UL Listed Liquid Tight Metal Conduit for superior crush, corrosion, and chemical resistance. Compliant with NEC standards.

$329.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

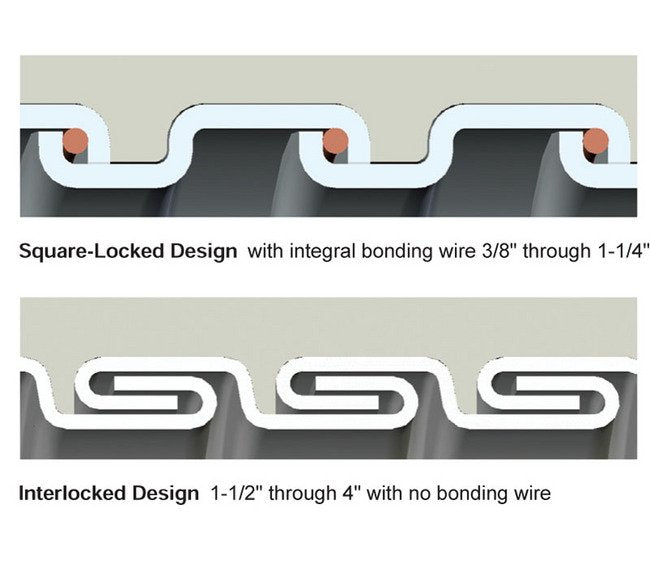

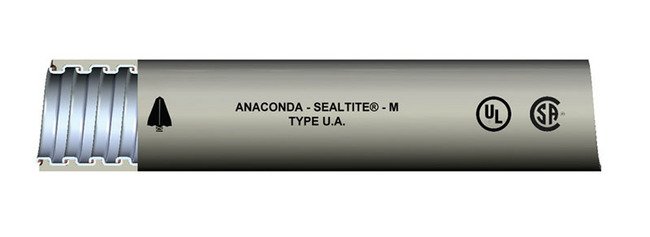

Experience superior durability and corrosion resistance with Sealtite® Type UA HD Liquid Tight Metal Conduit. This UL Listed conduit features a hot-dipped zinc galvanized steel core and a UV-resistant PVC jacket, ensuring protection against crush, corrosion, heat, oil, and chemicals. Suitable for direct burial and concrete installations, this conduit is compliant with NEC Articles 300.22 (D), 250.102, 250.118(5), and more. Available in trade sizes ranging from 3/8 to 4 inches, it meets the stringent requirements for hazardous locations and heavy-duty usage.

Product Specifications

Specifications Approx Inside Bend Radius

17 in | 431.8 mm

Specifications Approx Weight Per 100 Ft

366 lbs | 166 kg

Specifications Electrical Trade Size

4 in | 103 mm

Specifications Inside Diameter

4.000 to 4.040 in | 101.600 to 102.616 mm

Specifications Length

100 ft | 30.48 m

Specifications Outside Diameter

4.460 to 4.500 in | 113.284 to 114.300 mm

Specifications Packaging

Standard Reels
