Sealtite Type OR - Oil Resistant Liquid-Tight Flexible Metal Conduit
Sealtite Type OR - Oil Resistant Liquid-Tight Flexible Metal Conduit
Flexible, oil-resistant metal conduit for superior wiring protection in versatile applications.
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
Sealtite Type OR - Oil Resistant Liquid-Tight Flexible Metal Conduit
$159.99
Quantity: 1
Claim Your Seller Account
Sealtite Type OR - Oil Resistant Liquid-Tight Flexible Metal Conduit
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

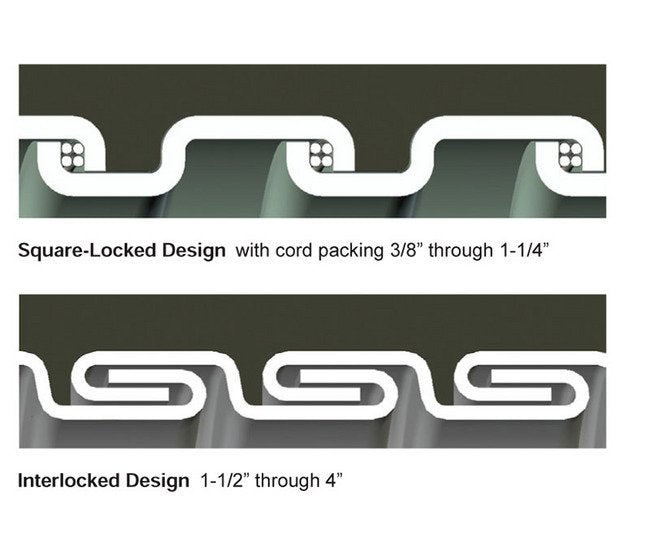

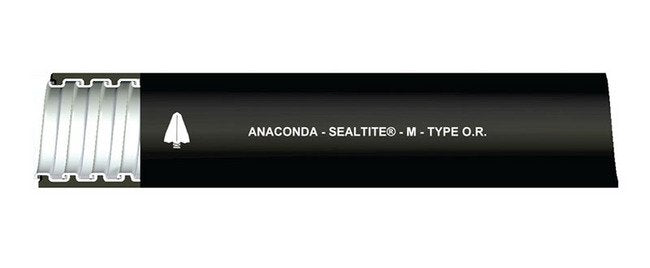

The Sealtite Type OR Special Oil Resistant Jacket Liquid-Tight Flexible Metal Conduit (LFMC) is designed to provide a durable and flexible liquid-tight raceway for wiring. Constructed with a continuously interlocked hot-dipped zinc galvanized steel core and a sunlight resistant PVC outer jacket, this conduit is ideal for applications where agency approvals are not required. With an IP 67 rating when used with approved end connectors, it ensures superior wiring protection. Suitable for a temperature range of -9ºF to +221ºF (-23ºC to +105ºC), making it perfect for environments where exposure to cutting oils is common.
Product Specifications
Application 0
Where Exposure to Cutting Oils OccurTemperature Range: -9ºF to +221ºF (-23ºC to +105ºC)
Installation 0
Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors.Delivers superior wiring protection where agency approvals are not required.Manufactured in a full range of trade sizes from 3/8" through 4".Smooth appearing jacket for exposed applications.Rated for temperature range of -9ºF to +221ºF (-23ºC to +105ºC).Provides liquid-tight raceway for electrical conductors.
Specifications Approx Inside Bend Radius
5.5 in | 139.7 mm
Specifications Approx Weight Per 100 Ft
104 lbs | 47.17 kg
Specifications Color
BLACK
Specifications Core Material
Galvanized Steel
Specifications Cross Reference
LOR-15
Specifications Electrical Trade Size
1-1/2 in | 41 mm
Specifications Industry Certifications
RoHS WEEE
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Diameter
1.575 to 1.600 in | 40.005 to 40.640 mm
Specifications Jacket Benefits
Liquid Tight | Oil Resistant
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
150 ft | 45.72 m
Specifications Note
Sizes above 2" available on special order.Type OR-H available as special with heavy plated steel core and integral bonding wire.
Specifications Optional Colors
Gray
Specifications Outside Diameter
1.865 to 1.900 in | 47.371 to 48.260 mm
Specifications Packaging
Small Reels
Specifications Type
OR
