Semi-tubular rivets help assemble a wide variety of materials and are one of the most common forms of rivets used. Semi-tubular rivets can be employed for multiple applications, such as luggage, brakes, and 3 ring binders. Semi-tubular rivets are defined as having a hole-depth less than 112% of the mean body diameter. Semi-tubular rivets require a pre-drilled hole. Minimum order quantity is 25,000 pieces.Materials include: carbon steel, stainless steel, aluminum, brass & copper.Body diameter ranges from .060” to 1/2” Head shapes include: oval, flat, counter-sunk & trussA wide variety of finishes are available to provide corrosion resistance and cosmetic appearance to suit your requirements.This is a partial listing of our custom part capabilities. Please contact our engineering department to discuss your requirements, should they not be listed.

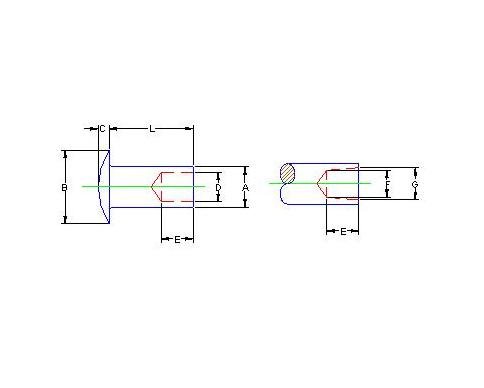

Product Specifications
Specifications A Body Diameter
.118 to .123 Inch
Specifications Body Diameter
1/8 Inch
Specifications B Head Diameter
.276 to .286 Inch
Specifications C Head Height
.032 to .040 Inch
Specifications E Hole Depth
.095 Inch
Specifications F Taper Hole Diameter
.080 Inch
Specifications G Taper Hole Diameter
.096 Inch
Specifications Head Type
Oval Head
Specifications Material
Brass
