SFEI Series 6mm Tube OD 1/2in Female Elbow with i-Fitting®
SFEI Series 6mm Tube OD 1/2in Female Elbow with i-Fitting®
SKU:SFE-c8781d
High-quality SFEI Series 6mm Tube OD 1/2in Female Elbow with i-Fitting® for precise compression and enhanced safety.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
SFEI Series 6mm Tube OD 1/2in Female Elbow with i-Fitting®
$29.99
Quantity: 1
Claim Your Seller Account
SFEI Series 6mm Tube OD 1/2in Female Elbow with i-Fitting®
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

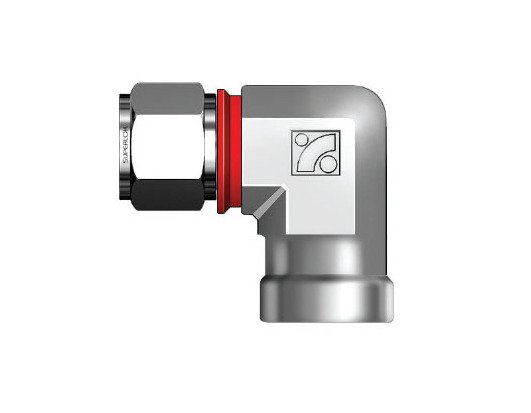

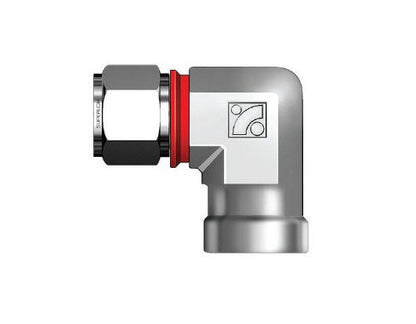

The SFEI Series Female Elbow is a high-quality component designed to connect metric tubes to male ISO tapered threads efficiently. Crafted from a range of robust materials including Alloy 625, Stainless Steel, and Brass, this female elbow ensures durability and reliability in various applications. The innovative i-Fitting® design features a built-in check ring for precise compression, enhancing installer safety and productivity. Ideal for valve connections, this industry-changing female elbow is suitable for high-pressure and chemical environments.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

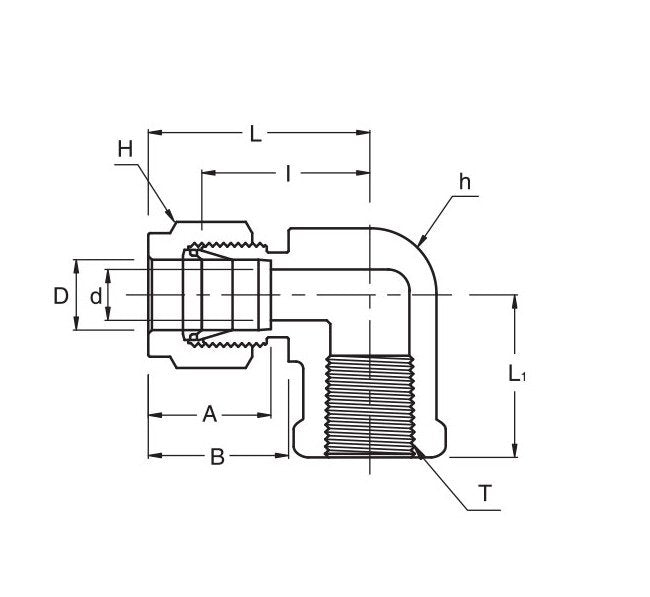

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
15.3 mm
Technical Specs Dimension B
17.7 mm
Technical Specs Dimension I
27.2 mm
Technical Specs Dimension L
34.6 mm
Technical Specs Dimension L1
28.40 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.8 mm
Technical Specs Standard Size
6 to 25 mm
Technical Specs Thread Size T
1/2 in
Technical Specs Thread Type
Pipe Thread (PT)
Technical Specs Tube Outside Diameter D
6 mm
Technical Specs Width Across Flat H
14 mm
