SHIELDTITE® High Level Shielding Liquid-Tight Flexible Metal Conduit

Name: SHIELDTITE® High Level Shielding Liquid-Tight Flexible Metal Conduit
Brand: Anamet Electrical, Inc.
SKU: LIQ-c5bf4e
Price: 39.99 USD
Availability: OutOfStock

SKU:LIQ-c5bf4e

High-performance SHIELDTITE® Conduit for superior EMI/EMP shielding. IP 66/67 rated, meets Mil-STD-1310H, and suitable for extreme temperatures. Ideal for high RFI and EMI shielding applications.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

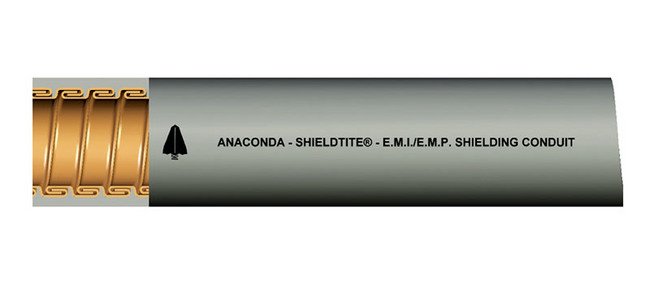

The SHIELDTITE® High Level Shielding Liquid-Tight Flexible Metal Conduit offers superior EMI/EMP shielding effectiveness of 81 - 119 dB at 1 kHz to 1 GHz. Constructed with a bronze core and thermoplastic PVC jacket, this conduit meets Mil-STD-1310H, ensuring reliable performance in extreme temperatures from -51ºF to +221ºF. Its smooth cover and IP 66/67 rating provide added protection for sensitive conductors, making it ideal for high RFI and EMI shielding applications. Available in custom-cut lengths, this conduit is compatible with standard liquid-tight connectors for easy installation.

Product Specifications

Application 0

For High Level RFI and EMI ShieldingTemperature Range: -51ºF to +221ºF (-46ºC to +105ºC)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Meets Mil-STD-1310H for EMI and EMP shielding. Smooth interior surface protects sensitive conductors from harm. Provides shielding effectiveness of 81 - 119 dB at 1 Kilohertz to 1 Gigahertz. Rated for temperature range from -51ºF to + 221ºF (-46ºC to +105ºC). Manufactured in a full range of sizes from 3/8" through 4". Available in custom-cut lengths.

Specifications Approx Inside Bend Radius

3.0 in | 76.2 mm

Specifications Approx Weight Per 100 Ft

28 lbs | 12.70 kg

Specifications Color

GRAY

Specifications Core Material

Bronze

Specifications Cross Reference

78811 | 78814 | EMS-11

Specifications Electrical Trade Size

1/2 in | 16 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

0.622 to 0.642 in | 15.799 to 16.307 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

Custom

Specifications Note

Available in Random Lengths

Specifications Outside Diameter

0.820 to 0.840 in | 20.828 to 21.336 mm

Specifications Packaging

Contact Anamet

Specifications Type

SHIELDTITE®
