SHIELDTITE® Liquid-Tight Flexible Metal Conduit for High Level EMI/EMP Shielding

Name: SHIELDTITE® Liquid-Tight Flexible Metal Conduit for High Level EMI/EMP Shielding
Brand: Anamet Electrical, Inc.
SKU: LIQ-0d815a
Price: 99.99 USD
Availability: OutOfStock

SKU:LIQ-0d815a

SHIELDTITE® Conduit: High-level EMI/EMP shielding, IP 66/67, meets Mil-STD-1310H. Ideal for sensitive applications.

$99.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

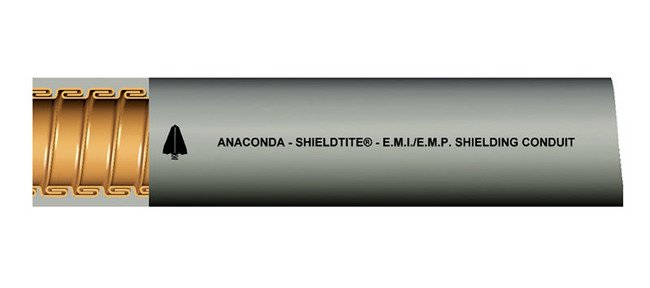

Experience superior shielding with SHIELDTITE® Conduit featuring a bronze core for high-level shielding effectiveness meeting Mil-STD-1310H specs. Designed for temperatures from -51ºF to +221ºF, it offers IP 66/67 protection and RoHS WEEE compliance. Easy to install with liquid-tight connectors, it ensures RFI and EMI shielding for sensitive applications.

Product Specifications

Application 0

For High Level RFI and EMI ShieldingTemperature Range: -51ºF to +221ºF (-46ºC to +105ºC)

Installation 0

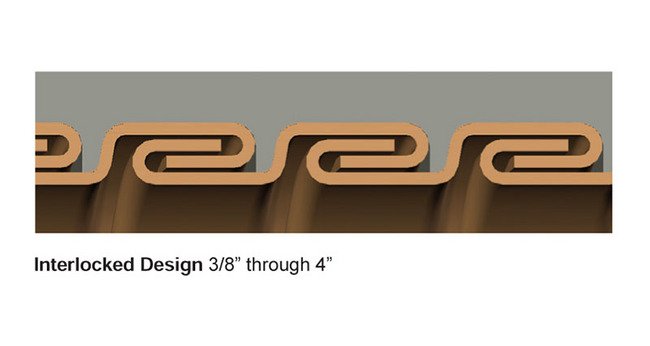

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Meets Mil-STD-1310H for EMI and EMP shielding. Smooth interior surface protects sensitive conductors from harm. Provides shielding effectiveness of 81 - 119 dB at 1 Kilohertz to 1 Gigahertz. Rated for temperature range from -51ºF to + 221ºF (-46ºC to +105ºC). Manufactured in a full range of sizes from 3/8" through 4". Available in custom-cut lengths.

Specifications Approx Inside Bend Radius

4.5 in | 114.3 mm

Specifications Approx Weight Per 100 Ft

75 lbs | 34.02 kg

Specifications Color

GRAY

Specifications Core Material

Bronze

Specifications Cross Reference

78842 | 78844 | EMS-14

Specifications Electrical Trade Size

1-1/4 in | 35 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

1.370 to 1.395 in | 34.798 to 35.433 mm

Specifications Jacket Benefits

Liquid Tight

Specifications Jacket Material

Polyvinyl Chloride (PVC)

Specifications Length

Custom

Specifications Note

Available in Random Lengths

Specifications Outside Diameter

1.630 to 1.660 in | 41.402 to 42.164 mm

Specifications Packaging

Contact Anamet

Specifications Type

SHIELDTITE®

SHIELDTITE® Liquid-Tight Flexible Metal Conduit for High Level EMI/EMP Shielding
