SHIELDTITE® Z1 - Liquid-Tight Flexible Metal Conduit for High Level EMI/EMP Shielding

Name: SHIELDTITE® Z1 - Liquid-Tight Flexible Metal Conduit for High Level EMI/EMP Shielding
Brand: Anamet Electrical, Inc.
SKU: LIQ-d7b006
Price: 99.99 USD
Availability: OutOfStock

SKU:LIQ-d7b006

Achieve high-level EMI/EMP shielding with SHIELDTITE® Z1 LFMC, IP 66/67 rated, and Mil-STD-1310H compliant for -40ºF to +176ºF. Customize lengths for secure installation.

$99.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

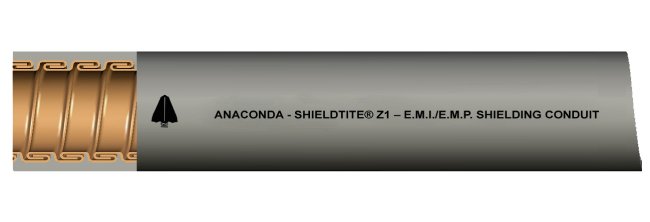

Meet stringent EMI/EMP shielding demands with SHIELDTITE® Z1, featuring a bronze core for superior shielding effectiveness of 81 - 119 dB from 1 KHz to 1 GHz. This LFMC is designed with a smooth, zero halogen Thermoplastic PVC jacket, ensuring protection in temperatures ranging from -40ºF to +176ºF. IP 66/67 rated and compliant with Mil-STD-1310H, it provides reliable RFI and EMI shielding in diverse applications. Available in customizable lengths, this conduit is easy to install with liquid-tight connectors, catering to temperature-sensitive conductors with precision and durability.

Product Specifications

Application 0

For High Level RFI and EMI ShieldingTemperature Range: -40ºF to +176ºF (-40ºC to +80ºC)

Installation 0

Conduit used with standard liquid-tight connector for easy installation. IP 67 Rated when installed with approved connectors. Meets Mil-STD-1310H for EMI and EMP shielding. Smooth interior surface protects sensitive conductors from harm. Provides shielding effectiveness of 81 - 119 dB at 1 Kilohertz to 1 Gigahertz. Rated for temperature range from -40ºF to + 176ºF (-40ºC to +80ºC). Manufactured in a full range of sizes from 3/8" through 4". Available in custom-cut lengths.

Specifications Approx Inside Bend Radius

3.0 in | 76.2 mm

Specifications Approx Weight Per 100 Ft

24 lbs | 10.89 kg

Specifications Color

GRAY

Specifications Core Material

Bronze

Specifications Cross Reference

78201 | 78204 | HFEMS-10

Specifications Electrical Trade Size

3/8 in | 12 mm

Specifications Industry Certifications

RoHS WEEE

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Inside Diameter

0.485 to 0.505 in | 12.319 to 12.827 mm

Specifications Jacket Benefits

Liquid Tight | Zero Halogen

Specifications Jacket Material

Thermoplastic Polyurethane (TPU)

Specifications Length

Custom

Specifications Note

Available in Random Lengths

Specifications Outside Diameter

0.690 to 0.710 in | 17.526 to 18.034 mm

Specifications Packaging

Contact Anamet

Specifications Type

SHIELDTITE® Z1

SHIELDTITE® Z1 - Liquid-Tight Flexible Metal Conduit for High Level EMI/EMP Shielding
