SIF Series 2.4mm Micron Inline Filter with SUPERLOK® Connections
SIF Series 2.4mm Micron Inline Filter with SUPERLOK® Connections
SKU:SIF-119732
High-performance 2.4mm Micron Inline Filter with SUPERLOK® Connections, ideal for removing contaminants efficiently in limited spaces.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
SIF Series 2.4mm Micron Inline Filter with SUPERLOK® Connections
$89.99
Quantity: 1
Claim Your Seller Account
SIF Series 2.4mm Micron Inline Filter with SUPERLOK® Connections
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

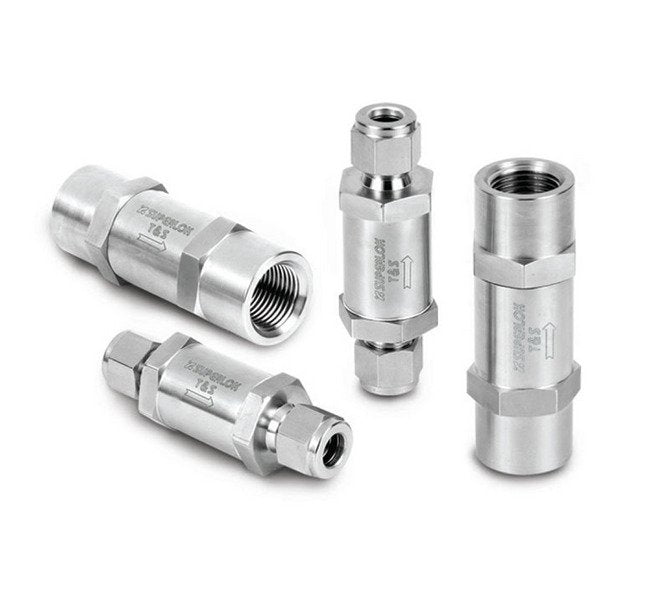

The SIF Series 2.4mm Micron Inline Filter with SUPERLOK® Inlet End Connections is a high-performance filtration solution designed to remove system particulate contaminants effectively. With a durable body material of 316 Stainless Steel | Brass and a sintered effective filtration area of 0.55 in² | 350 mm², this filter ensures optimal filtration efficiency. It features a replaceable filter element and compact design suitable for limited-space applications. Operating at a maximum pressure of 3000 psi and a wide temperature range from -20 to 900 ºF | -28 to 482 ºC, this filter is versatile and reliable for various industrial settings.
Product Specifications
Features Features
Remove system particulate contaminants.Inline filters are for use where space is limited.Replaceable filter element.1/8 to 1/2 in. and 3 to 10mm end connections.
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Body Material
316 Stainless Steel | Brass

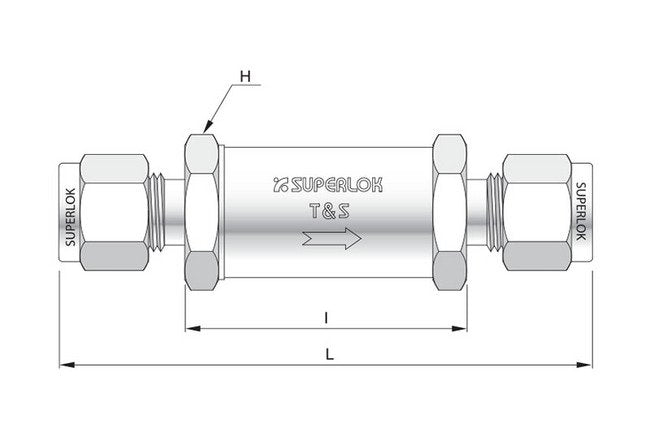

Technical Specs Dimension H
14.3 mm
Technical Specs Dimension I
29.2 mm
Technical Specs Dimension L
60.5 mm
Technical Specs Inlet End Connections
3 mm Superlok®
Technical Specs Maximum Operating Pressure At 70 Degree Fahrenhe
3000 psi
Technical Specs Operating Temperature Range With Stainless Steel
-20 to 900 ºF | -28 to 482 ºC
Technical Specs Orifice Size
2.4 mm
Technical Specs Outlet End Connections
3 mm SUPERLOK®
Technical Specs Sintered Effective Filtration Area
0.55 in² | 350 mm²
