High voltage Silicone Coated FEP Cable with Nomex Jacket, offering superior dielectric bond and excellent abrasion resistance for durability under harsh conditions.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Silicone Coated FEP Cable with Nomex Jacket
$34.99
Quantity: 1
Claim Your Seller Account
Silicone Coated FEP Cable with Nomex Jacket
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

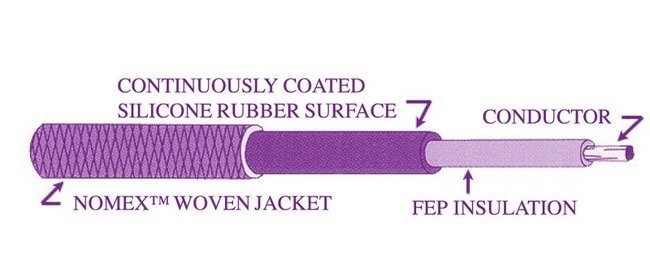

The Silicone Coated FEP Cable with Nomex Jacket combines the benefits of silicone rubber potting with superior dielectric bond for high voltage applications. With a Nomex woven protective jacket, this cable offers excellent abrasion resistance, ensuring durability under harsh conditions. Featuring silver-plated copper conductors and FEP insulation, it meets stringent industry standards for reliability and performance. Operating temperature ranging from -55 to +125 °C makes it ideal for various industrial applications.
Product Specifications
Alternate Cable Part Number Equivalents Etched Part Number
178-8780
Alternate Cable Part Number Equivalents Silicone Coated Part Num
178-8781
Cable Wire Properties Etched
No
Cable Wire Properties Jacketed
Yes
Cable Wire Properties Silicone Coated
Yes
Cable Wire Properties Twisted Pair
No
Cable Wire Properties Twisted Shielded Pair
No
Specifications Conductor Diameter
0.039 in | 0.110 in | 1.010 mm
Specifications Conductor Gauge
20 AWG
Specifications Conductor Material
Copper
Specifications Conductor Plating
Silver Plated
Specifications Conductor Strands
19/32
Specifications Default Color
Natural
Specifications Diameter Over Silicone Coating
0.110 in | 2.790 mm
Specifications Insulator Material
FEP
Specifications Operating Temperature
-55 to 125 ºC
Specifications Overall Diameter
0.110 in
Specifications Standardnon Standard
Standard Part
Specifications Voltage Rating
30 kVDC
Specifications Wire Type
S/C FEP
