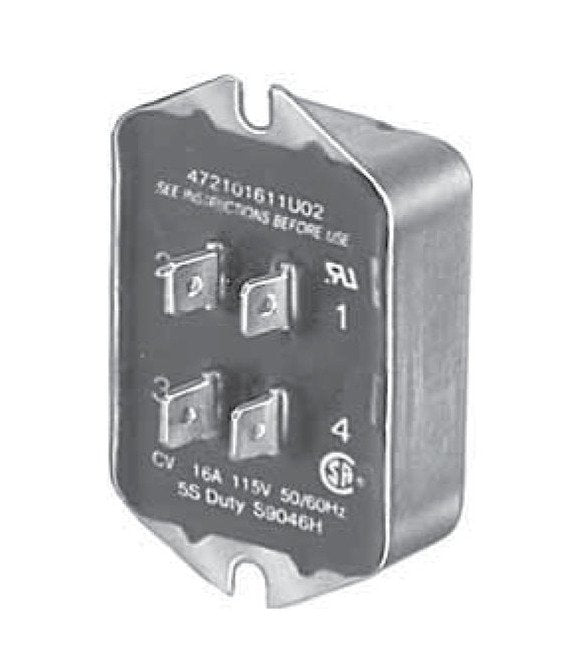

SINPAC® Capacitor Start Motor Switch CV-150-147

SINPAC® Capacitor Start Motor Switch CV-150-147

MOT-c87e44

Efficient SINPAC® Capacitor Start Motor Switch for dual voltage motors, UL and CSA certified

$99.99
$99.99
Sale

Initiate Order

SINPAC® Capacitor Start Motor Switch CV-150-147

SINPAC® Capacitor Start Motor Switch CV-150-147

$99.99

Quantity: 1

Claim Your Seller Account

SINPAC® Capacitor Start Motor Switch CV-150-147

SINPAC® Capacitor Start Motor Switch CV-150-147

$99.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

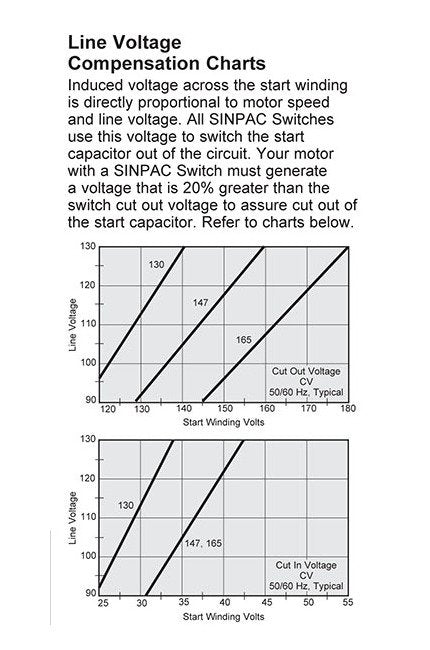

The SINPAC® CV-150-147 switch is designed for 115 or 115/230 Voltage (VAC) dual voltage capacitor start motors. It intelligently controls the start circuit based on RPM-sensitive voltage comparison, ensuring efficient motor acceleration and deceleration. With a switch rating of 50 A and typical maximum motor capability of 3 hp, it guarantees optimal performance. This switch boasts UL E71115, Canadian UL Recognition, and CSA Certification, meeting the highest industry standards. Operating flawlessly between -40 °C to 65 °C, it ensures reliability in diverse environments.

Product Specifications

Additional Features 0

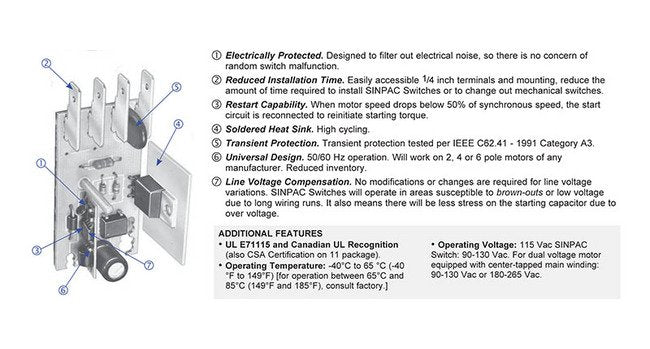

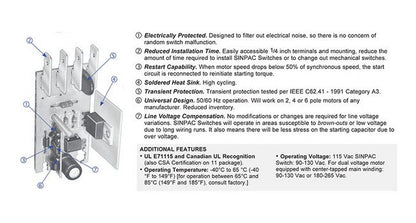

UL E71115 and Canadian UL Recognition (also CSA Certification on 11 package). Operating Temperature: -40 ºC to 65 ºC (-40 ºF to 149 ºF) [for operation between 65 ºC and 85 ºC (149 ºF and 185 ºF), consult factory.] Operating Voltage: 115 VAC SINPAC® Switch 90-130 VAC. For dual voltage motor equipped with center-tapped mam winding: 90-130 VAC or 180-265 VAC.
Specifications Certification
CSA
Specifications List Price
0.0 USD

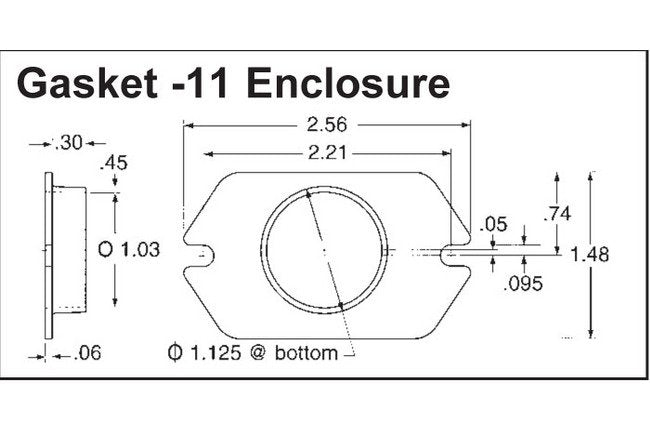

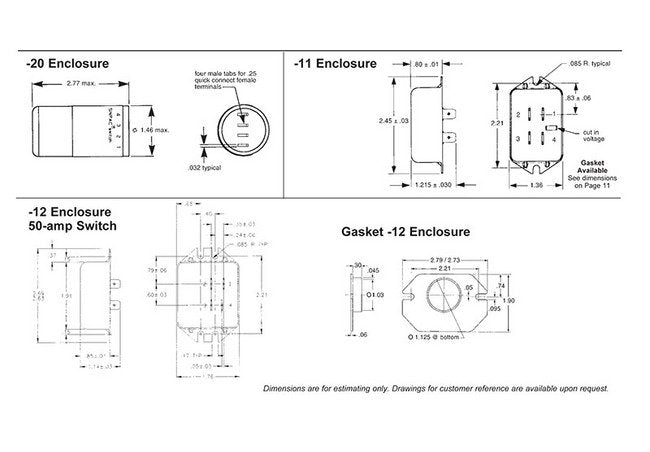

Specifications Package Style
11 | 20
Specifications Part Number
4-7-21050-12-UB1 | 4-7-21050-20-UB1
Specifications Start Circuit Voltage
115 V
Specifications Switch Rating Permissible Max Start Winding Curre
50 A
Specifications Cut In Voltage
37 V
Specifications Cut Out Voltage
147 V
Specifications Full Load Motor Current Rating 115230 Vol
25/12.5 A
Specifications Full Load Motor Current Rating 115 Volts
25 A
Specifications Maximum Motor
3 hp
