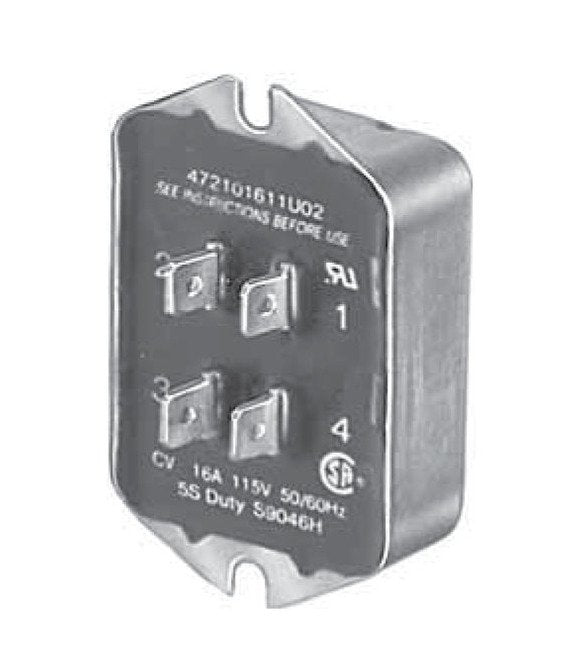

SINPAC® CV-40-147 Motor Start Switch
SINPAC® CV-40-147 Motor Start Switch
SKU:MOT-c8c21f
Enhance motor performance with SINPAC® CV-40-147 Motor Start Switch - CSA certified, dual voltage compatibility, and reliable operation in various temperatures.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
SINPAC® CV-40-147 Motor Start Switch
$49.99
Quantity: 1
Claim Your Seller Account
SINPAC® CV-40-147 Motor Start Switch
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

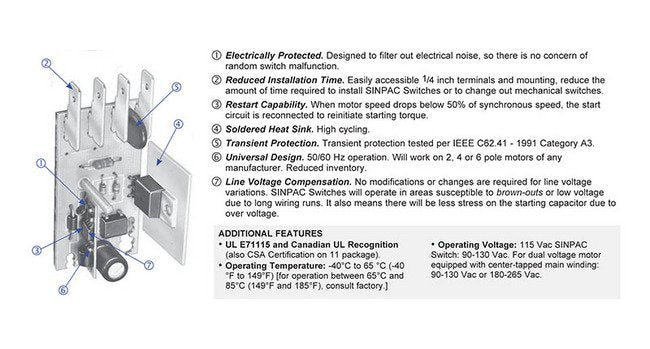

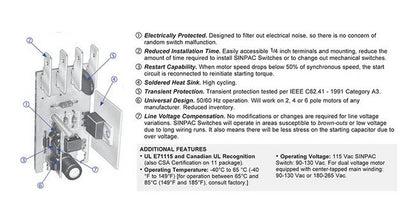

Upgrade your motor's performance with the SINPAC® CV-40-147 Motor Start Switch. This switch is designed for dual voltage capacitor start motors, with a permissible max start winding current of 16A and a typical cut out voltage at 147V. It features UL E71115 and Canadian UL Recognition, CSA certification, and operates in temperatures ranging from -40°C to 65°C. Equipped with SINPAC® technology, it ensures reliable motor start and stop functionality.
Product Specifications
Additional Features 0
UL E71115 and Canadian UL Recognition (also CSA Certification on 11 package). Operating Temperature: -40 ºC to 65 ºC (-40 ºF to 149 ºF) [for operation between 65 ºC and 85 ºC (149 ºF and 185 ºF), consult factory.] Operating Voltage: 115 VAC SINPAC® Switch 90-130 VAC. For dual voltage motor equipped with center-tapped mam winding: 90-130 VAC or 180-265 VAC.
Specifications Certification
CSA
Specifications List Price
0.0 USD

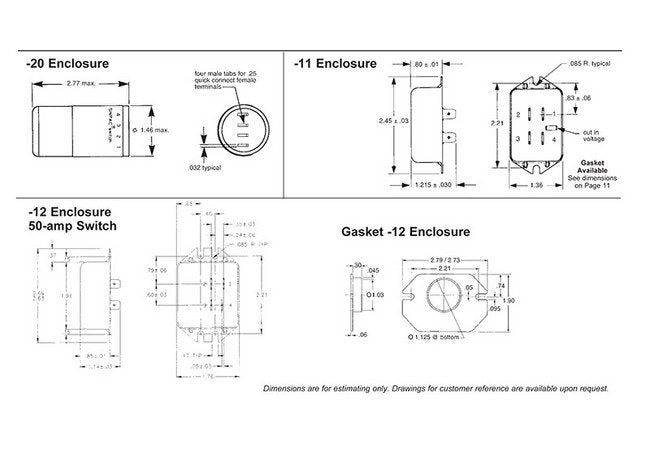

Specifications Package Style
11 | 20
Specifications Part Number
4-7-21016-11-UB1 | 4-7-21016-20-UB1
Specifications Start Circuit Voltage
115 V
Specifications Switch Rating Permissible Max Start Winding Curre
16 A
Specifications Cut In Voltage
37 V
Specifications Cut Out Voltage
147 V
Specifications Full Load Motor Current Rating 115230 Vol
8/4 A
Specifications Full Load Motor Current Rating 115 Volts
8 A
Specifications Maximum Motor
1/2 hp
