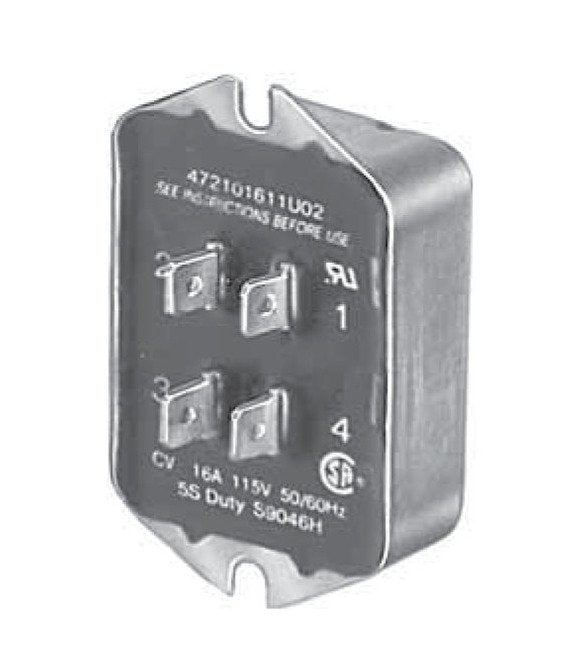

The SINPAC® Dual Voltage Capacitor Start Motor Switch is engineered for seamless extraction of speed data from the motor start winding, ensuring precise activation of the start circuit. With a typical maximum motor rating of 2 hp, full load current ratings of 20 A (115 V) and 20/10 A (115/230 V), and a switch rating permitting max start winding current of 40 A, this switch guarantees efficient operation. It features a package style in 11 or 20, UL E71115 and Canadian UL Recognition, CSA certification, and operates within a temperature range of -40°C to 65°C (-40°F to 149°F). Ideal for dual voltage motors, this switch meets stringent quality standards for reliable performance.
Product Specifications

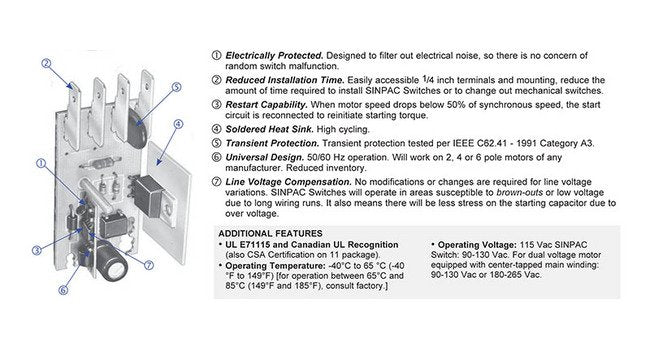

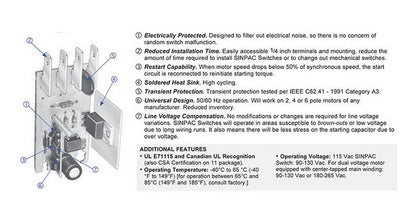

Additional Features 0
UL E71115 and Canadian UL Recognition (also CSA Certification on 11 package). Operating Temperature: -40 ºC to 65 ºC (-40 ºF to 149 ºF) [for operation between 65 ºC and 85 ºC (149 ºF and 185 ºF), consult factory.] Operating Voltage: 115 VAC SINPAC® Switch 90-130 VAC. For dual voltage motor equipped with center-tapped mam winding: 90-130 VAC or 180-265 VAC.
Specifications Certification
CSA
Specifications List Price
132.83 USD

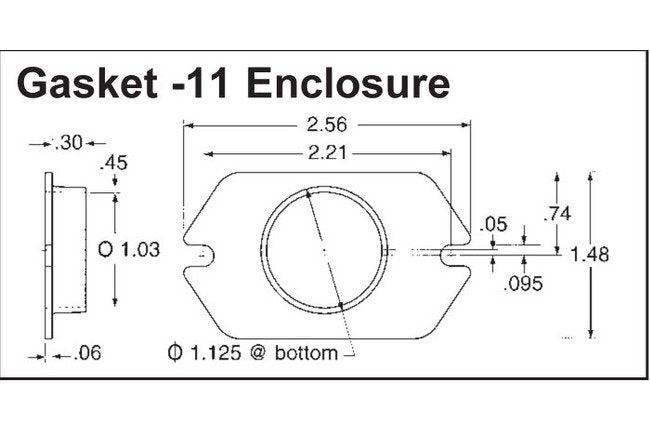

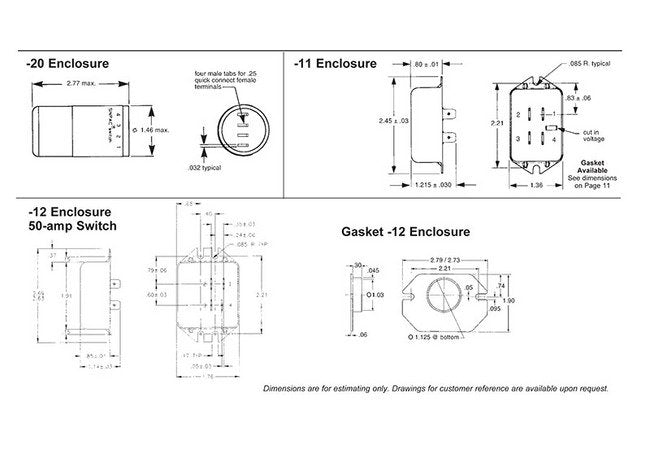

Specifications Package Style
11 | 20
Specifications Part Number
4-7-21040-11-UB1 | 4-7-21040-20-UB1
Specifications Start Circuit Voltage
115 V
Specifications Switch Rating Permissible Max Start Winding Curre
40 A

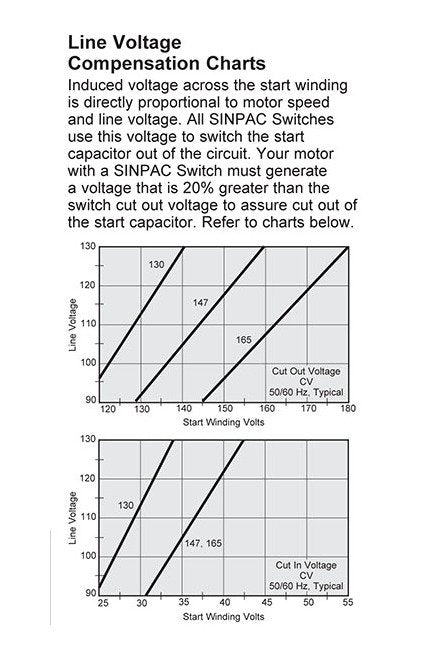

Specifications Cut In Voltage
37 V
Specifications Cut Out Voltage
147 V
Specifications Full Load Motor Current Rating 115230 Vol
20/10 A
Specifications Full Load Motor Current Rating 115 Volts
20 A
Specifications Maximum Motor
2 hp
