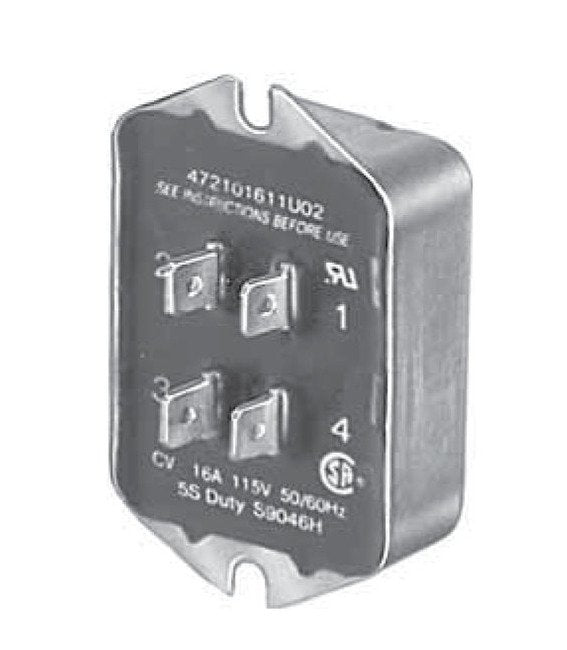

The SINPAC® Solid State Switch CV-40-147 is designed for 115 or 115/230 VAC dual voltage capacitor start motors, providing precise control over motor start circuit energization. With a typical maximum motor rating of 1 hp and a permissible max start winding current of 25 A, this switch ensures efficient motor operations. Its certification includes CSA approval, UL E71115, and Canadian UL Recognition, making it a reliable choice for motor and switch replacement needs. Operating within a wide temperature range of -40°C to 65°C (-40°F to 149°F) and offering flexibility in voltage compatibility, this switch delivers optimal performance and durability.
Product Specifications
Additional Features 0
UL E71115 and Canadian UL Recognition (also CSA Certification on 11 package). Operating Temperature: -40 ºC to 65 ºC (-40 ºF to 149 ºF) [for operation between 65 ºC and 85 ºC (149 ºF and 185 ºF), consult factory.] Operating Voltage: 115 VAC SINPAC® Switch 90-130 VAC. For dual voltage motor equipped with center-tapped mam winding: 90-130 VAC or 180-265 VAC.
Specifications Certification
CSA
Specifications List Price
0.0 USD

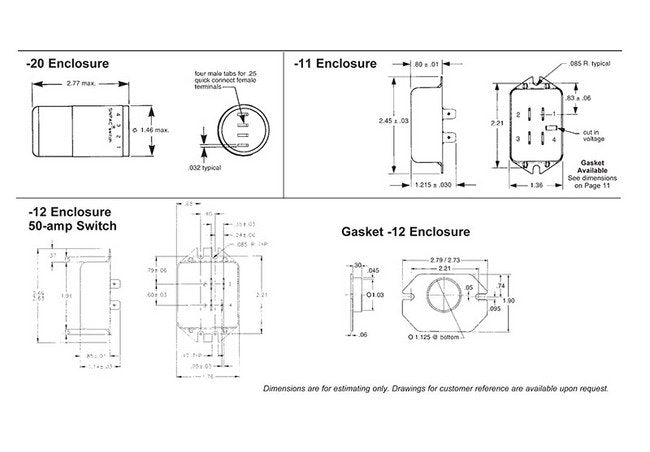

Specifications Package Style
11 | 20
Specifications Part Number
4-7-21025-11-UB1 | 4-7-21025-20-UB1
Specifications Start Circuit Voltage
115 V
Specifications Switch Rating Permissible Max Start Winding Curre
25 A

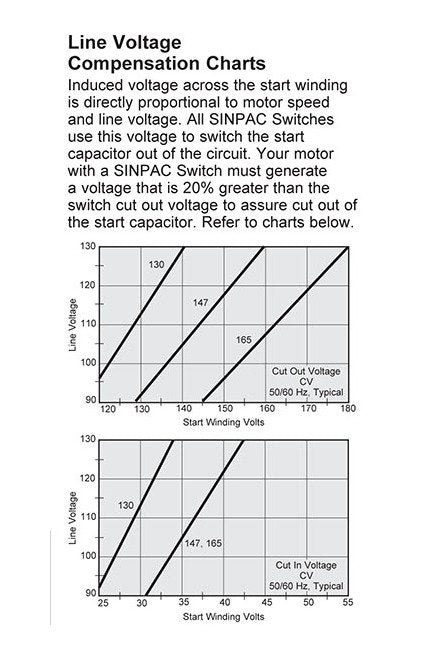

Specifications Cut In Voltage
37 V
Specifications Cut Out Voltage
147 V
Specifications Full Load Motor Current Rating 115230 Vol
12/6 A
Specifications Full Load Motor Current Rating 115 Volts
12 A
Specifications Maximum Motor
1 hp
