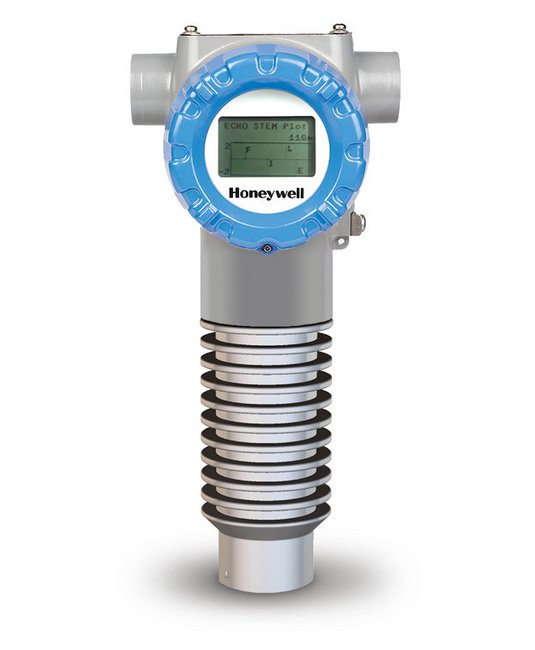

SmartLine® Level Transmitters
SmartLine® Level Transmitters
SKU:SMA-1e48c4
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
SmartLine® Level Transmitters
$49.99
Quantity: 1
Claim Your Seller Account
SmartLine® Level Transmitters
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
A new standard for total performance and user experienceIn addition SmartLine® Level Transmitter offers a new user experience from the start of using a new online tool or profiling the targeted tank application to the moment when the SmartLine® Level Transmitter is installed and ready for measurement.The SmartLine® Application Validation Tool prevents costly errors upfront by validating the SmartLine® Level Transmitter against the specified process tank. The tool interfaces to Honeywell's order management system ensuring that the transmitter is built to the right specifications.
Product Specifications
Additional Information
SmartLine® Level offers:Leading performance and user experienceUnique features that lower your total cost of ownershipEfficient control system integration
Features
Honeywell Transmitters are Recognized for Their Unsurpassed Performance and AccuracyAble to measure liquids and interfaces2-wire, 4-20mA loop powerHART, Foundation Fieldbus output optionsTransmitter configuration write protection2 kV electrical transient immunityUnequaled local display capabilitiesField calibration and configuration through external three-button facilityRecall capability of last good calibrationUniversal terminalComprehensive on-board diagnostic capabilitiesFull compliance to SIL 2/3 requirements as a standardAdvanced display supports:Up to 8 screens with three formats: process variable, bar graph and trendFull library of engineering units with the ability to add custom unitsConfigurable screen rotation timingMultiple languagesTwo diagnostic indications90-degree position adjustments
Technical Specs Accuracy
±3 mm or 0.03% of Measured Distance
Technical Specs Full Scope Of Process Connections
Flanges starting from DN40 and 1-1/2 inchNPT thread starting from 3/4 inch
Technical Specs Operating Temperature
-60 to 450 ºC | -76 to 842 ºF
Technical Specs Pressure Rating
-1 to 400 bar | -14 to 5801 psi
Technical Specs Repeatability
±1 mm
Technical Specs Resolution
1 mm
Technical Specs Wetted Materials For Corrosive Environments
316 Stainless Steel | Alloy C-276
