Efficiently bridge conveyor gaps with SpanTech® Dead Plate Transfer Conveyors for smooth and safe material transfer.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
SpanTech® Dead Plate Transfer Conveyors
$1,299.99
Quantity: 1
Claim Your Seller Account
SpanTech® Dead Plate Transfer Conveyors
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
SpanTech® Dead Plate Transfer Conveyors feature a flat stainless steel or UHMW dead plate that seamlessly connects conveyors, ensuring smooth material transfer. With a safety lift-out design and compatibility with varying conveyor speeds, these transfers excel in propelling rigid products across gaps efficiently. Ideal for institutional applications requiring reliable and safe material handling.
Product Specifications

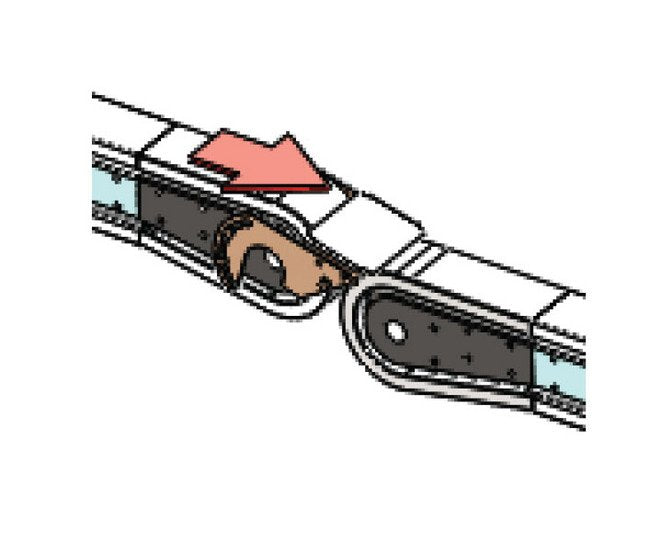

Horizontal Standard To Standard Dead Plate Transfer Horizontal S
Products as small as 8.5" (215.9 mm) can be transferred at any speed.Best suited for higher-speed conveyors carrying larger, rigid products.

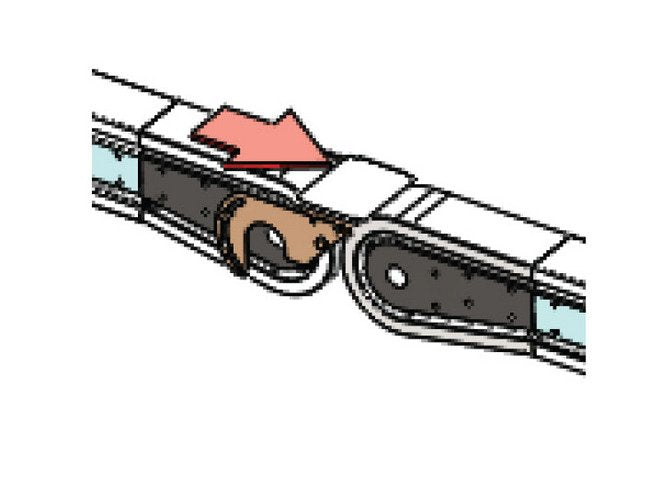

Offset Standard To Standard Dead Plate Transfer Offset Standard
The offset dead plate transfer is similar to an offset transfer. Due to the downhill angle of the plate, the offset dead plate transfer can work with conveyor speeds slower than those compatible with the standard dead plate. Like the offset ballistic transfer, the offset dead plate may cause products to tumble, and therefore may require the use of guide rails for some applications.Products as small as 8.5" (215.9 mm) can be transferred at any speed.Best suited for higher-speed conveyors carrying larger, rigid products.
Product Requirements For Both Product Requirements For Both
Smaller products are possible at speeds of 120 ft/min (36.576 m/min) and higherRaw or sticky material is likely to stall on a dead plate transfer.This method can only be used in applications where the conveyor runs fast enough to reliably propel the product across the unpowered transfer bridge.Transfer is not suitable for most bagged products as their flaps or seams could get caught in the transferDesigned with a safety lift-out feature.
Specifications Product Size For Horizontal Standard To Standard
8.5 in | 215.9 mm
Specifications Product Size For Offset Standard To Standard Dead
8.5 in | 215.9 mm
