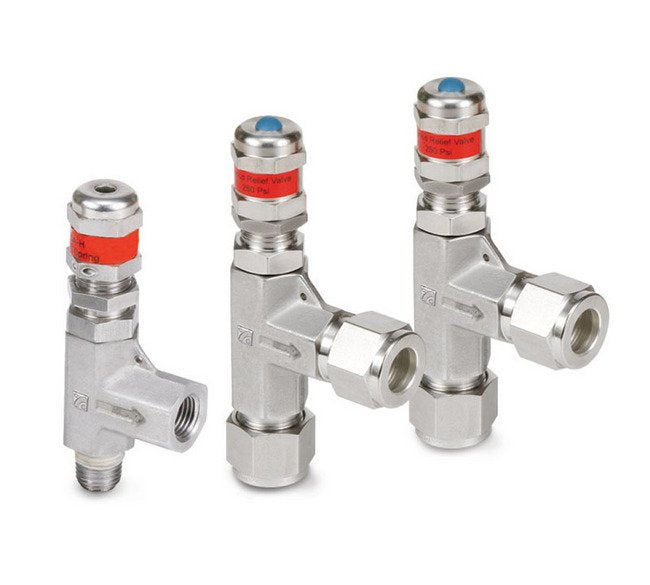

SRVL Series 8mm Low Pressure Relief Valve with Superlok® Connections
SRVL Series 8mm Low Pressure Relief Valve with Superlok® Connections
SKU:REL-730077
Superior 8mm Low Pressure Relief Valve for precise pressure control. Compact, adjustable, and factory-tested for reliability.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
SRVL Series 8mm Low Pressure Relief Valve with Superlok® Connections
$89.99
Quantity: 1
Claim Your Seller Account
SRVL Series 8mm Low Pressure Relief Valve with Superlok® Connections
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SUPERLOK® SRVL Series 8mm Low Pressure Relief Valve offers a reliable solution for pressure relief applications. With a maximum working pressure of 300 psig, this valve ensures optimal performance in various settings. Its compact design, adjustable cracking pressure, and secure lock wire feature make it versatile and easy to use. Tested at the factory for consistency, this valve guarantees repeatable performance within ±5%. Ideal for institutional and government buyers requiring precision and quality.
Product Specifications
Features Features
Compact designCracking pressure adjustable externallyLock wire feature secures a given pressure settingEach and every valve is tested at the factory
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Set Pressure Set Pressure
Set pressure is the upstream pressure at which the first indication of flow occurs.Set pressure of each valve after initial relief is repeatable within ±5% at room temperature
Technical Specs Cracking Pressure Range
10~250 psig | 0.69~17.2 bar

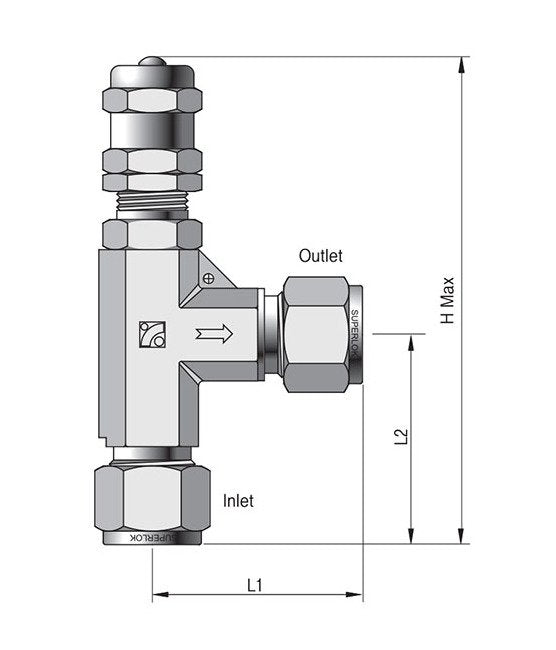

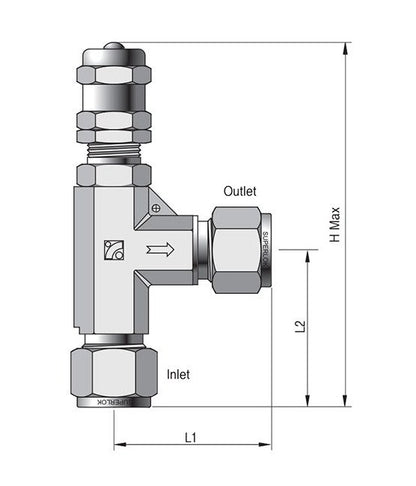

Technical Specs Dimension H
104.6 mm
Technical Specs Dimension L1
38.7 mm
Technical Specs Dimension L2
37.3 mm
Technical Specs Inlet End Connections
8 mm Superlok®
Technical Specs Maximum Working Pressure
300 psig | 206 bar
Technical Specs Orifice Size
4.8 mm
Technical Specs Outlet End Connections
8 mm Superlok®
Technical Specs Series
SRVL
