Stainless Steel Pwr-Flo™ AODD Pump with PTFE Neoprene Diaphragm
Stainless Steel Pwr-Flo™ AODD Pump with PTFE Neoprene Diaphragm
SKU:MAN-ffdab7
Efficient Stainless Steel AODD Pump for reliable liquid transfer, handling solids and slurries effectively.
Regular price
$1,299.99
Regular price
Sale price
$1,299.99
Unit price
per
Initiate Order
Stainless Steel Pwr-Flo™ AODD Pump with PTFE Neoprene Diaphragm
$1,299.99
Quantity: 1
Claim Your Seller Account
Stainless Steel Pwr-Flo™ AODD Pump with PTFE Neoprene Diaphragm
$1,299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Stainless Steel Pwr-Flo™ AODD Pump is a robust air-driven double diaphragm pump designed as a drop-in replacement for Wilden® AODD pumps. Featuring a PTFE Neoprene back-up diaphragm, this pump handles large solids and slurries with ease. The asymmetrical spool design ensures efficient air system operation, enhancing reliability for liquid transfer applications. Built with chemically resistant polypropylene components, this pump offers excellent durability and performance for filling, batching, and industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

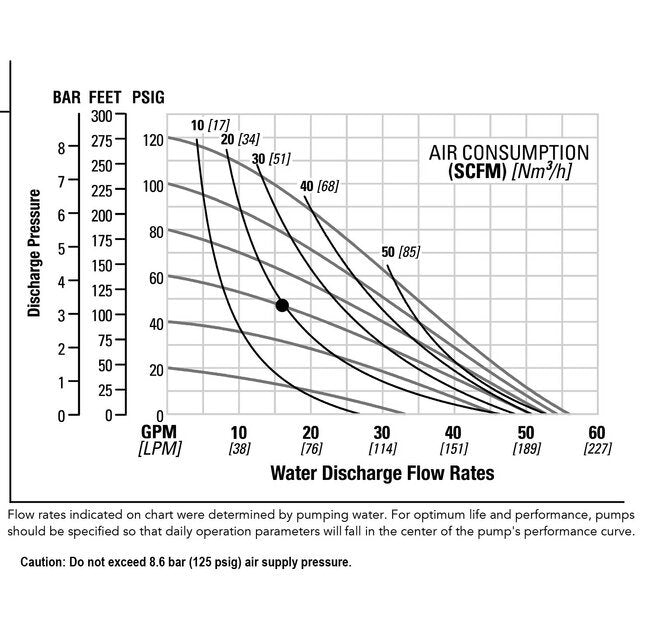

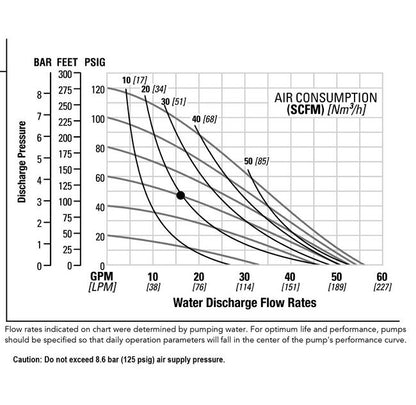

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applicationsThe air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Stainless Steel
Specifications Customs Code
Schedule B Code 8413.50.00.50
Specifications Diaphragm Material
PTFE Neoprene back-up
Specifications Displacement Per Cycle
0.08 gal | 0.30 lit
Specifications Elastomers
PTFE, PTFE
Specifications Fluid Inlet Size
1 in | 25 mm
Specifications Fluid Outlet Size
1 NPT in | 25 NPT mm
Specifications Height
14 Inch | 14 in | 342.90 mm
Specifications Length
15 Inch | 15 in | 0.3734 m | 373.38 mm
Specifications Max Flow Rate
56 gpm | 211.98 lpm
Specifications Model
NPF250/SAAA/TF/TF/STF/N/B/X
Specifications Non Wetted Material
Aluminum
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
250-1841
Specifications Solids Handling
0.08 in | 2 mm
Specifications Wetted Moc
Stainless Steel
Specifications Width
11 Inch | 11 in | 0.2870 m | 287.02 mm
