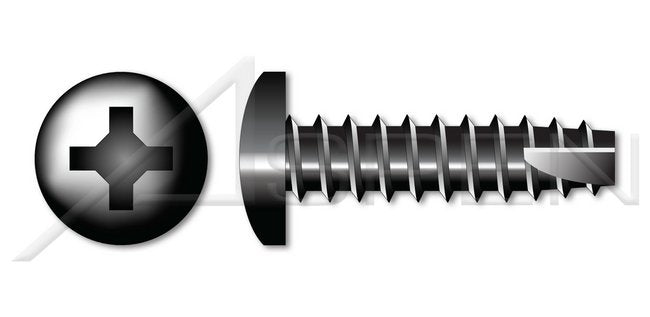

Steel Black Oxide and Oil Type "25" Pan Phillips® Drive Thread Cutting Screw

Name: Steel Black Oxide and Oil Type "25" Pan Phillips® Drive Thread Cutting Screw
Brand: Aspen Fasteners
SKU: SCR-dad011
Price: 49.99 USD
Availability: OutOfStock

SKU:SCR-dad011

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Thread Cutting Screws are a type of self-tapping screw designed to tap its own threads as it penetrates a pre-drilled pilot hole. Manufactured with specialized screw points - referred to as "Types" (Type 1, Type 23, Type 25 and Type F) - designed to physically remove material from the substrate to form the tapped thread path.

Product Specifications

Additional Information

Thread cutting screws are a type of self-tapping screw that cuts threads in existing holes in metal.Type 25 point screws are similar to type 23 but are equipped with a coarse type B thread.

Specifications Coating

Oxidized and Oiled

Specifications Coating Color

Black

Specifications Core Hardness Rating

Rockwell C28-C38

Specifications Drive Detail

Phillips® Type H

Specifications Drive Style

Cruciform Recess Drive

Specifications Head Style

Pan Head

Specifications Industry Standards And Specifications

American Society of Mechanical Engineers (ASME B18.6.3) | Society of Automotive Engineers (SAE-J933)

Specifications Material

Steel

Specifications Material Processes

Case Hardened

Specifications Minimum Hardness Rating

Rockwell C45

Specifications Point

Type "25"

Specifications System Of Measurement

Inch

Specifications Thread Direction

Right-Hand Thread

Specifications Thread Length

Full Thread
