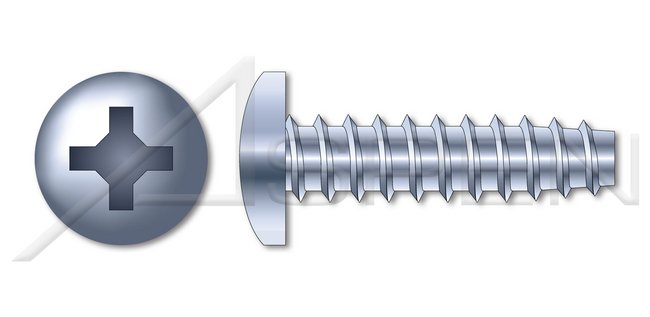

Steel Zinc Plated Pan Phillips® Drive Thread Rolling Screw for Plastics

Name: Steel Zinc Plated Pan Phillips® Drive Thread Rolling Screw for Plastics
Brand: Aspen Fasteners
SKU: SCR-5e8932
Price: 49.99 USD
Availability: OutOfStock

SKU:SCR-5e8932

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Contrary to Thread Cutting Screws, Thread Rolling Screws are designed to deform (instead of eject) the material that they are screwed into in order to form a thread in an untapped hole. There are different designs of Thread Rolling Screws depending on whether they are meant to be screwed into metals or plastics.

Product Specifications

Additional Information

These screws are generic alternatives to EJOT PT® Screws.Also known as thread forming screws, thread rolling screws, trilob screws, or trilobe screws.Pan head screws are also known as raised cheese head screws.

Specifications Coating

Zinc Plated and Waxed

Specifications Coating Color

Clear

Specifications Drive Detail

Phillips® Type H

Specifications Drive Style

Cruciform Recess Drive

Specifications Hardness Rating

Vickers HV 327-382

Specifications Head Style

Pan Head

Specifications Material

Steel

Specifications Material Grade

AISI-SAE C1022 Steel

Specifications Material Processes

Through-Hardened

Specifications Style

Round Body with Threads for Plastics

Specifications System Of Measurement

Metric

Specifications Threading

30 Degree Thread

Specifications Thread Direction

Right-Hand Thread

Specifications Thread Length

Full Thread
