SUI Series 1/4in Tube Union with i-Fitting® Technology
SUI Series 1/4in Tube Union with i-Fitting® Technology
SKU:SUI-0063d5
Enhance tube connections with precision using the SUI Series 1/4in Tube Outside Diameter Union featuring i-Fitting® technology.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
SUI Series 1/4in Tube Union with i-Fitting® Technology
$39.99
Quantity: 1
Claim Your Seller Account
SUI Series 1/4in Tube Union with i-Fitting® Technology
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SUI Series 1/4in Tube Outside Diameter Union is a high-performance fitting that ensures a secure connection for fractional tubes. Featuring innovative i-Fitting® components, including a built-in gap gauge check ring, this union prevents over- and under-tightening, enhancing installer safety and productivity. Designed for high-pressure and chemical environments, it offers industry-leading reliability and cost-saving benefits. Made from premium materials like Alloy 625, Stainless Steel, and more, this union is ideal for valve connections in various applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

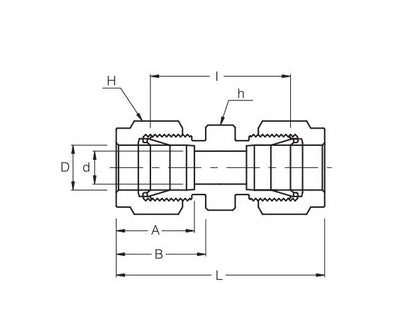

Technical Specs Dimension A
15.24 mm
Technical Specs Dimension B
17.78 mm
Technical Specs Dimension I
26.16 mm
Technical Specs Dimension L
40.89 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
4.82 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Tube Outside Diameter D
1/4 in
Technical Specs Width Across Flat H
9/16 in
