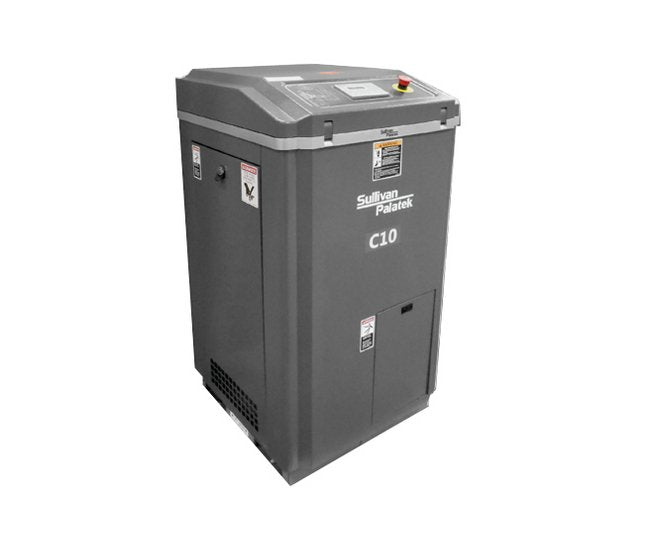

The Sullivan-Palatek® C-Series Air Compressor is a powerhouse designed to meet the compressed air needs of both consumer and institutional buyers. With pressure options of 100 psi, 125 psi, and 145 psi, this compressor boasts a flow capacity tailored to industrial requirements. Equipped with a range of advanced features such as energy efficiency, microprocessor control, and comprehensive motor protection, the C-Series ensures reliable performance. At a sound level of 68 dBA, this compressor operates quietly, making it ideal for various environments. Sullivan-Palatek® guarantees quality and support, making the C-Series a dependable choice for all your compressed air needs.
Product Specifications

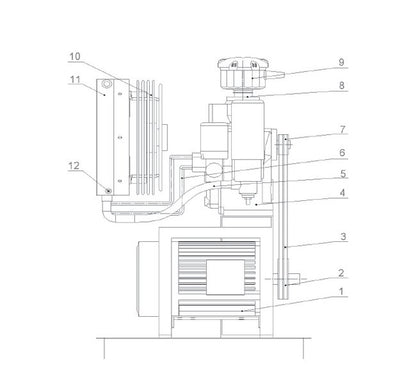

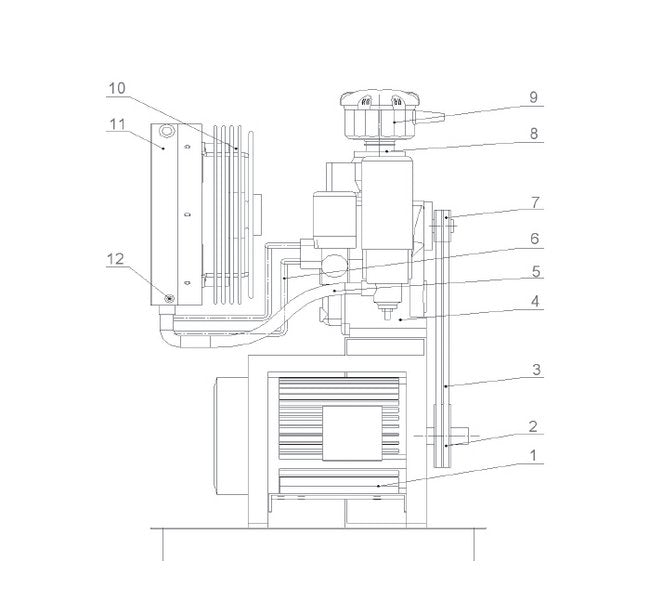

Diagram Diagram Description
1 - Motor | 10 - Fan with Motor | 11 - Oil and Air Cooler | 12 - Pressure Sensor | 2 - Motor Sheave | 3 - V-Belts | 4 - Encapsulated Air End | 5 - Discharge Hose | 6 - Oil Hose | 7 - Compressor Sheave | 8 - Intake Valve Assembly | 9 - Air Filter Assembly
Diagram Diagram Number
1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12

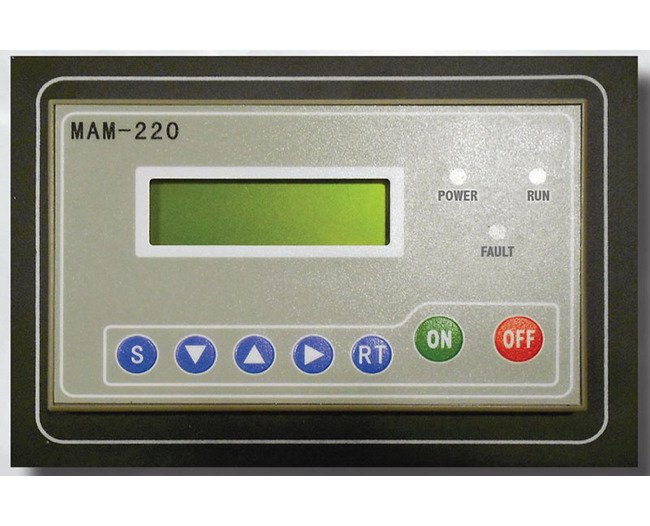

Microprocessor Features Displays
High Temperature Alarm | Load Time | Oil Change Time | Oil Filter Change Time | Overload Alarm | RS 485 Communication | Run Time | Separator Change Time
Note 0
Dedicated to Quality & Committed to Support.
Product Information Features
Energy efficientMicroprocessor controlMulti point measuring and protection of pressure and temperatureE-StopRS-485 communication interface functionSeven function maintenance schedule/monitoringFull function electrical control for motor protectionMotor overload relayPhase protection
Product Information Phase
3
Product Information Quiet
68 dBA
Product Information Voltage
230 V | 460 V
Specifications Brand
Sullivan-Palatek®
Specifications Discharge National Pipe Thread Npt
1/2 in
Specifications Flow Capacity At 100 Psi 69 Bar Rating
40 ft³/min | 1.1 m³/min
Specifications Flow Capacity At 125 Psi 86 Bar Rating
35 ft³/min | 1.0 m³/min
Specifications Flow Capacity At 145 Psi 10 Bar Rating
30 ft³/min | 8 m³/min
Specifications Height
45 in | 1030 mm
Specifications Industry Standards
I Make America
Specifications Length
25 in | 630 mm
Specifications Motor Power
10 hp
Specifications Pressure
100 psi | 125 psi | 145 psi | 6.9 bar | 8.6 bar | 10 bar
Specifications Series
C
Specifications Speed Of Totally Enclosed Fan Cooled Tefc Motor
3510 rpm
Specifications Sump Capacity
0.5 gal | 1.89 L
Specifications Weight
465 lb | 211 kg
Specifications Width
25 in | 630 mm
