Suncor® 316L Stainless Steel Grade 50 Lifting Chain - 3/8in Size

Suncor® 316L Stainless Steel Grade 50 Lifting Chain - 3/8in Size

CHA-106f88

Reliable Suncor® Stainless Steel Grade 50 Lifting Chain - Ideal for overhead lifting, meets MIL-DTL-32655

$89.99
$89.99
Sale

Initiate Order

Suncor® 316L Stainless Steel Grade 50 Lifting Chain - 3/8in Size

Suncor® 316L Stainless Steel Grade 50 Lifting Chain - 3/8in Size

$89.99

Quantity: 1

Claim Your Seller Account

Suncor® 316L Stainless Steel Grade 50 Lifting Chain - 3/8in Size

Suncor® 316L Stainless Steel Grade 50 Lifting Chain - 3/8in Size

$89.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Suncor® Stainless Grade 50 Lifting Chain, calibrated to grade 80 dimensions, is a reliable and durable lifting solution for various applications. With a high Basic Load (BL) of 17,600 lb and a Working Load Limit (WLL) of 4,400 lb, this chain ensures safety and performance. Meeting MIL-DTL-32655 requirements, it is rated for overhead lifting, making it ideal for industrial and institutional use. Never exceed the working load limit and ensure all assembly components are overhead lifting rated for maximum safety.

Product Specifications

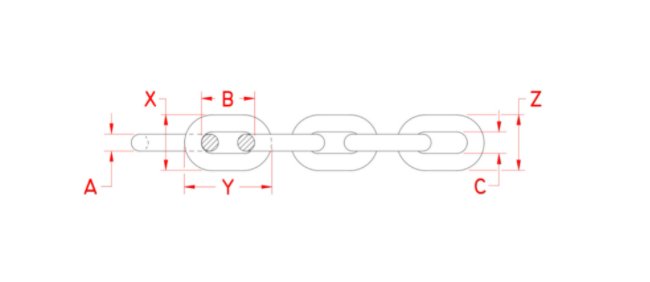

Dimensions In Dimension A
0.39 in
Dimensions In Dimension B
1.18 in
Dimensions In Dimension C
0.55 in
Dimensions In Height X
1.34 in
Dimensions In Length Y
1.96 in
Dimensions In Width Z
1.34 in
Note Note
Calibrated suncor® grade 50 lifting chain, made to grade 80 dimensions. meets the requirements of: MIL-DTL-32655. never exceed working load limit.Working loads are based on gradual pull and not shock loads. make sure that all components in your assembly are overhead lifting rated andHave the same working loads. All dimensions are nominal (± 3%) and are subject to change without notice.Rated for overhead liftingImported
Specifications Basic Load Bl
17,600 lb
Specifications Carton Quantity
1
Specifications Each Quantity
1
Specifications Grade
316L Stainless Steel
Specifications Industry Standards
MIL-DTL-32655
Specifications Inner Quantity
1
Specifications Package Type
Polybag
Specifications Size
3/8 in
Specifications Upc Code
791506067597
Specifications Weight Wt
1.41 lb/ft
Specifications Working Load Limit Wll
4,400 lb
CAGE
1CXX6
