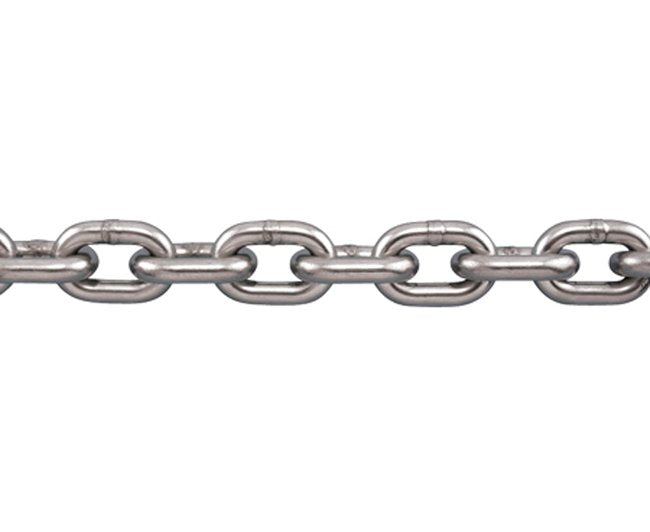

Suncor® 316L Stainless Steel S4 NACM Chain
Suncor® 316L Stainless Steel S4 NACM Chain
SKU:CHA-db372b
Premium stainless steel S4 NACM Chain - USA-made, compliant with MIL-DTL-32655 & NACM standards.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Suncor® 316L Stainless Steel S4 NACM Chain
$39.99
Quantity: 1
Claim Your Seller Account
Suncor® 316L Stainless Steel S4 NACM Chain
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Suncor® 316L Stainless Steel S4 NACM Chain is proudly made in the USA to precise 'G4' dimensions, suitable for various US windlasses and industrial applications. With a Basic Load (BL) of 14,200 lb and a Working Load Limit (WLL) of 3,550 lb, this chain meets MIL-DTL-32655 requirements and complies fully with the NACM's specifications. It's a reliable choice for heavy-duty industrial use.

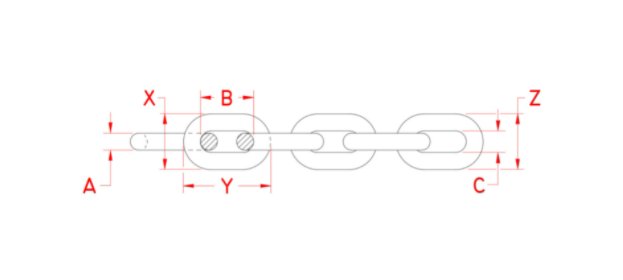

Product Specifications
Dimensions In Dimension A
0.39 in
Dimensions In Dimension B
1.22 in
Dimensions In Dimension C
0.57 in
Dimensions In Height X
1.37 in
Dimensions In Length Y
1.99 in
Dimensions In Width Z
1.37 in
Note Note
Suncor® grade S4 chain is made to "G4" dimensions. meets the requirements of: MIL-DTL-32655. it fits many standard U.S. windlasses and industrialApplications. this chain complies fully with all requirements of the U.S. national association of chain manufacturersâ (nacmâs) specifications.All dimensions are nominal (± 3%) and are subject to change without notice.Meets G4 Size
Specifications Basic Load Bl
14,200 lb
Specifications Carton Quantity
1
Specifications Each Quantity
1
Specifications Grade
316L Stainless Steel
Specifications Industry Standards
MIL-DTL-32655
Specifications Inner Quantity
1
Specifications Package Type
Polybag
Specifications Size
3/8 in
Specifications Upc Code
791506067528
Specifications Weight Wt
1.60 lb/ft
Specifications Working Load Limit Wll
3,550 lb
CAGE
1CXX6
NAICS
336413
