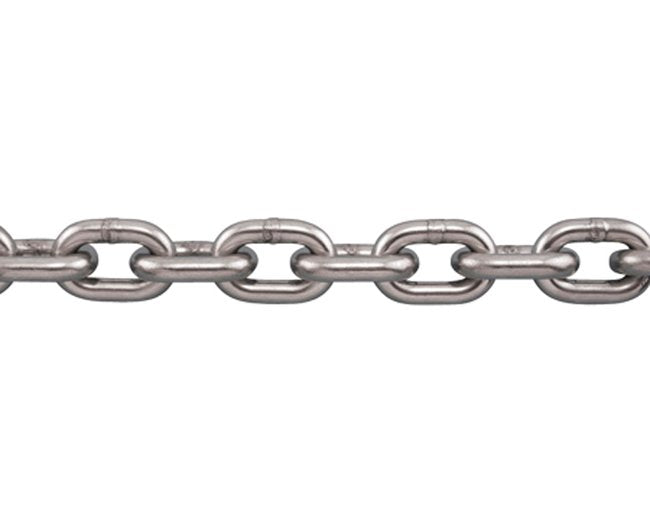

Suncor® Stainless 1/4 Inch S5 Grade 50 Lifting Chain - 316L Stainless Steel

Suncor® Stainless 1/4 Inch S5 Grade 50 Lifting Chain - 316L Stainless Steel

CHA-faddb4

Heavy-duty Suncor® Stainless 1/4 Inch S5 Grade 50 Lifting Chain for secure overhead lifting, Grade 316L Stainless Steel.

$34.99
$34.99
Sale

Initiate Order

Suncor® Stainless 1/4 Inch S5 Grade 50 Lifting Chain - 316L Stainless Steel

Suncor® Stainless 1/4 Inch S5 Grade 50 Lifting Chain - 316L Stainless Steel

$34.99

Quantity: 1

Claim Your Seller Account

Suncor® Stainless 1/4 Inch S5 Grade 50 Lifting Chain - 316L Stainless Steel

Suncor® Stainless 1/4 Inch S5 Grade 50 Lifting Chain - 316L Stainless Steel

$34.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Suncor® Stainless 1/4 Inch S5 Grade 50 Lifting Chain is precision-engineered from high-quality 316L stainless steel, meeting MIL-DTL-32655 standards. Designed for overhead lifting, this chain offers a Working Load Limit (WLL) of 2,200 lb and a Basic Load (BL) of 8,800 lb. With dimensions crafted to grade 80 specifications, it ensures reliability and safety in industrial applications. Ensure compliance and optimal performance with this calibrated chain.

Product Specifications

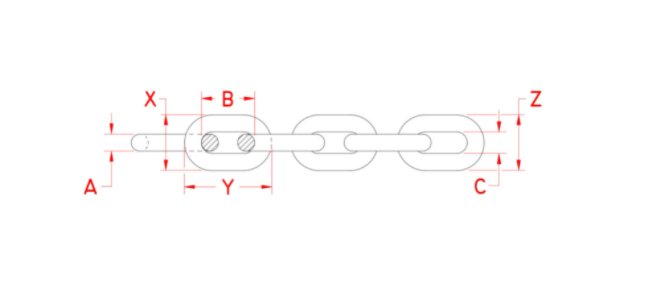

Dimensions In Dimension A
0.28 in
Dimensions In Dimension B
0.85 in
Dimensions In Dimension C
0.38 in
Dimensions In Height X
0.97 in
Dimensions In Length Y
1.38 in
Dimensions In Width Z
0.97 in
Note Note
Calibrated suncor® grade 50 lifting chain, made to grade 80 dimensions. meets the requirements of: MIL-DTL-32655. never exceed working load limit.Working loads are based on gradual pull and not shock loads. make sure that all components in your assembly are overhead lifting rated andHave the same working loads. All dimensions are nominal (± 3%) and are subject to change without notice.Rated for overhead lifting
Specifications Basic Load Bl
8,800 lb
Specifications Carton Quantity
1
Specifications Each Quantity
1
Specifications Grade
316L Stainless Steel
Specifications Industry Standards
MIL-DTL-32655
Specifications Inner Quantity
1
Specifications Package Type
Polybag
Specifications Size
1/4 in | 9/32
Specifications Upc Code
791506067573
Specifications Weight Wt
0.67 lb/ft
Specifications Working Load Limit Wll
2,200 lb
CAGE
1CXX6
