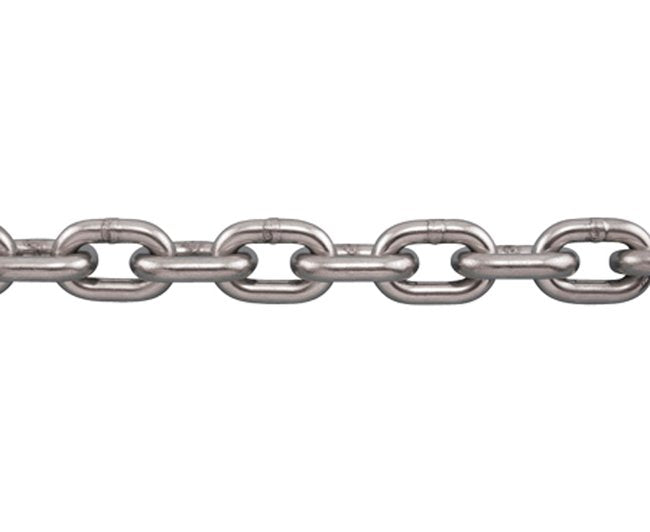

Suncor® Stainless 5/16 Inch Grade 50 Lifting Chain

Suncor® Stainless 5/16 Inch Grade 50 Lifting Chain

CHA-929fd9

Premium 316L Stainless Steel lifting chain with 2,700 lb WLL and MIL-DTL-32655 compliance for reliable overhead lifting.

$44.99
$44.99
Sale

Initiate Order

Suncor® Stainless 5/16 Inch Grade 50 Lifting Chain

Suncor® Stainless 5/16 Inch Grade 50 Lifting Chain

$44.99

Quantity: 1

Claim Your Seller Account

Suncor® Stainless 5/16 Inch Grade 50 Lifting Chain

Suncor® Stainless 5/16 Inch Grade 50 Lifting Chain

$44.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Suncor® Stainless 5/16 Inch Grade 50 Lifting Chain is crafted from 316L Stainless Steel to precision-grade 80 dimensions with a Working Load Limit (WLL) of 2,700 lb, ensuring reliable performance for overhead lifting applications. This chain complies with MIL-DTL-32655 requirements and is calibrated for optimal strength and safety. Never surpass the designated WLL to maintain workplace safety standards.

Product Specifications

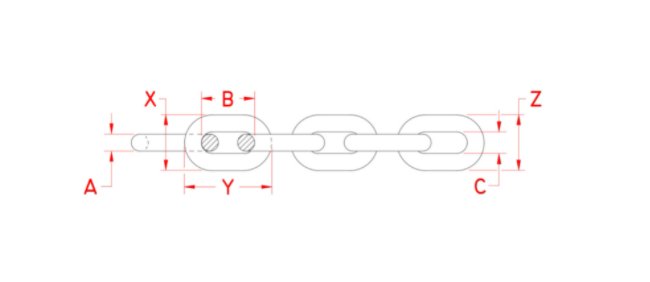

Dimensions In Dimension A
0.32 in
Dimensions In Dimension B
0.95 in
Dimensions In Dimension C
0.45 in
Dimensions In Height X
1.11 in
Dimensions In Length Y
1.55 in
Dimensions In Width Z
1.11 in
Note Note
Calibrated suncor® grade 50 lifting chain, made to grade 80 dimensions. meets the requirements of: MIL-DTL-32655. never exceed working load limit.Working loads are based on gradual pull and not shock loads. make sure that all components in your assembly are overhead lifting rated andHave the same working loads. All dimensions are nominal (± 3%) and are subject to change without notice.Rated for overhead lifting
Specifications Basic Load Bl
10,800 lb
Specifications Carton Quantity
275
Specifications Each Quantity
1
Specifications Grade
316L Stainless Steel
Specifications Industry Standards
MIL-DTL-32655
Specifications Inner Quantity
1
Specifications Package Type
Polybag
Specifications Size
5/16 in
Specifications Upc Code
791506045878
Specifications Weight Wt
0.98 lb/ft
Specifications Working Load Limit Wll
2,700 lb
CAGE
1CXX6
