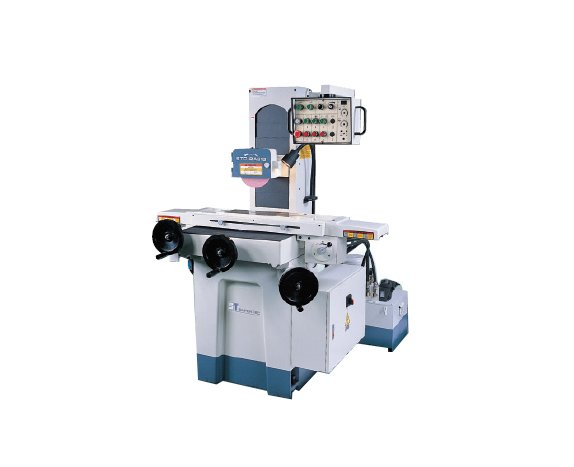

Supertec® 618 Hydraulic Table & Cross Feed Grinder
Supertec® 618 Hydraulic Table & Cross Feed Grinder
SKU:SUP-9a12fb
Experience precision and durability with the Supertec® 618 Hydraulic Table & Cross Feed Grinder.
Regular price
$22,499.99
Regular price
Sale price
$22,499.99
Unit price
per
Initiate Order
Supertec® 618 Hydraulic Table & Cross Feed Grinder
$22,499.99
Quantity: 1
Claim Your Seller Account
Supertec® 618 Hydraulic Table & Cross Feed Grinder
$22,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Supertec® 618 Hydraulic Table and Cross Feed Grinder is a precision-engineered machine designed to meet the most stringent quality control standards. With exceptional accuracy and durability, this grinder offers a flatness of 0.00012 in on the work table, ensuring precise grinding operations. Boasting a range of specifications including a grinding wheel speed of up to 3450 rpm and a powerful 3 hp spindle motor, this machine is built for smooth performance and increased productivity. Ideal for institutional and government buyers seeking top-notch surface grinding solutions.
Product Specifications
Specifications Approximate Gross Weight
1995 kg | 907 lb
Specifications Approximate Net Weight
1775 kg | 807 lb
Specifications Approximate Total Rated Power
4.1 hp | 3.1 kW
Specifications Crossfeed Motor Power
25 w
Specifications Cross Movement Approximate Rapid Travel
960 mm/min | 38 in/min
Specifications Cross Movement Automatic Traverse Increment
0.02 to 0.24 in | 0.4 to 6 mm
Specifications Cross Movement Automatic Traverse Travel
6-3/4 in | 170 mm
Specifications Cross Movement Handwheel Per Graduation
0.001 in | 0.02 mm
Specifications Cross Movement Handwheel Per Revolution
0.2 in | 5 mm
Specifications Cross Movement Manual Travel
7 in | 180 mm
Specifications General Capacity Distance From Table Surface To S
19.3 in | 490 mm
Specifications General Capacity Maximum Grinding Length
19 in | 480 mm
Specifications General Capacity Maximum Grinding Width
6 in | 170 mm
Specifications General Capacity Standard Magnetic Chuck Size
6 x 8 in | 150 x 450 mm
Specifications General Capacity Table Size
6 x 18 in | 150 x 450 mm
Specifications Grinding Wheel Size Od X W X B
8 x 12 x 1-1/4 in | 203 x 12.7 x 31.75 mm
Specifications Grinding Wheel Speed At 50 Hz
2850 rpm
Specifications Grinding Wheel Speed At 60 Hz
3450 rpm
Specifications Hydraulic Motor Power
1 hp | 0.75 kW
Specifications Longitudinal Movement Hydraulic Travel
20 in | 510 mm
Specifications Longitudinal Movement Manual Travel
20.9 in | 530 mm
Specifications Longitudinal Movement Table Speed Infinitely Vari
5 to 52 m/min | 16 to 82 ft/min
Specifications Manufacturer
Supertec®
Specifications Packing Height
76 in | 194 cm
Specifications Packing Length
58 in | 148 cm
Specifications Packing Width
44 in | 110 cm
Specifications Spindle Motor Power
3 hp | 2.3 kW
Specifications Total Floor Height Required
69 in | 1770 mm
Specifications Total Floor Length Required
76 in | 1950 mm
Specifications Total Floor Width Required
59 in | 1500 mm
Specifications Vertical Downfeed Handwheel Per Graduation
0.0001 in | 0.005 mm
Specifications Vertical Downfeed Handwheel Per Graduation Option
0.0000050 in | 0.0001 mm
Specifications Vertical Downfeed Handwheel Per Revolution
0.050 in | 1 mm
Stringent Quality Control To Supertec Specifications Parallelism
0.0001/18 in
Stringent Quality Control To Supertec Specifications Run Out Of
0.000060 in
Stringent Quality Control To Supertec Specifications Work Table
0.00012 in
